Electronics
|
|
|
Power
|
|
250 W RMS per channel into 8 �1�76�1�78
|
|
|
30 W pure class A
|
|
|
1000 W RMS on lower impedance
|
Sensitivity
|
|
1 V or 2 V RMS
|
Bandwidth
|
|
0 Hz to 120 KHz, +0/-0.5 dB
|
Crosstalk
|
|
Not related for mono amplifiers
|
Signal-to-noise ratio
|
|
Typically 110 dB
|
|
|
ASA “A” weighted
|
THD+N
|
|
< 0.03%
|

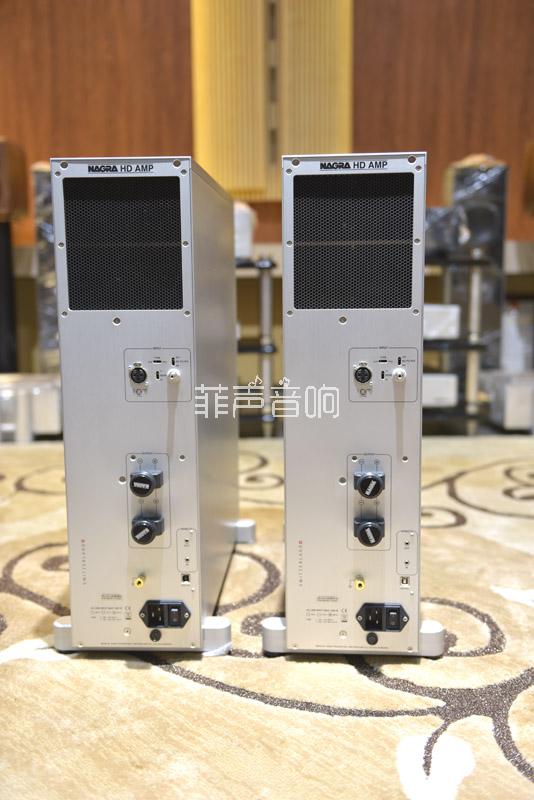

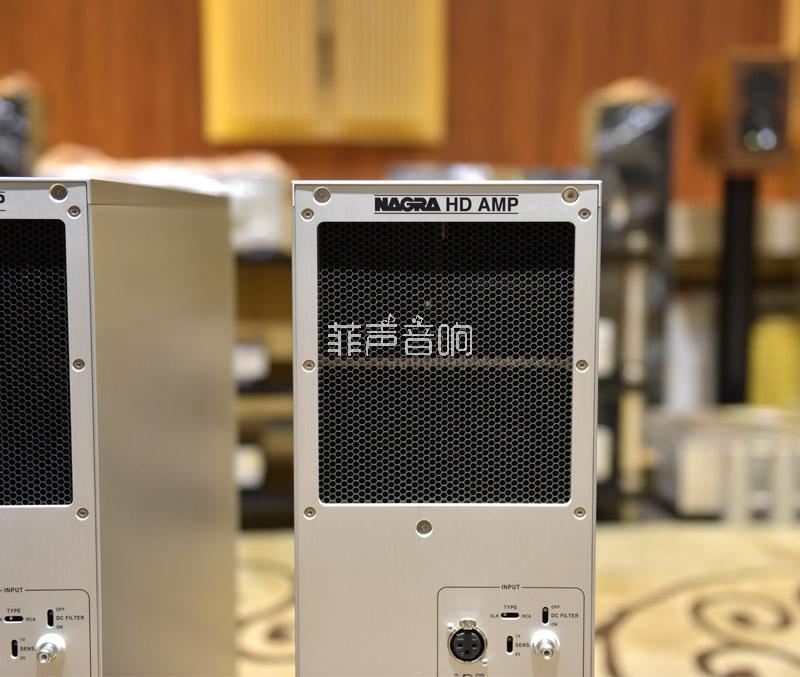

Input type
|
|
XLR balanced
|
|
|
RCA unbalanced
|
Input impedance
|
|
88 K�1�76�1�78 on balanced input
|
|
|
t44 k�1�76�1�78 on unbalanced input
|
DC filter
|
|
Toggle switch allows to cut the DC of incoming signals
|
Protection,
|
|
Overheating > +70° C (158° F)
|

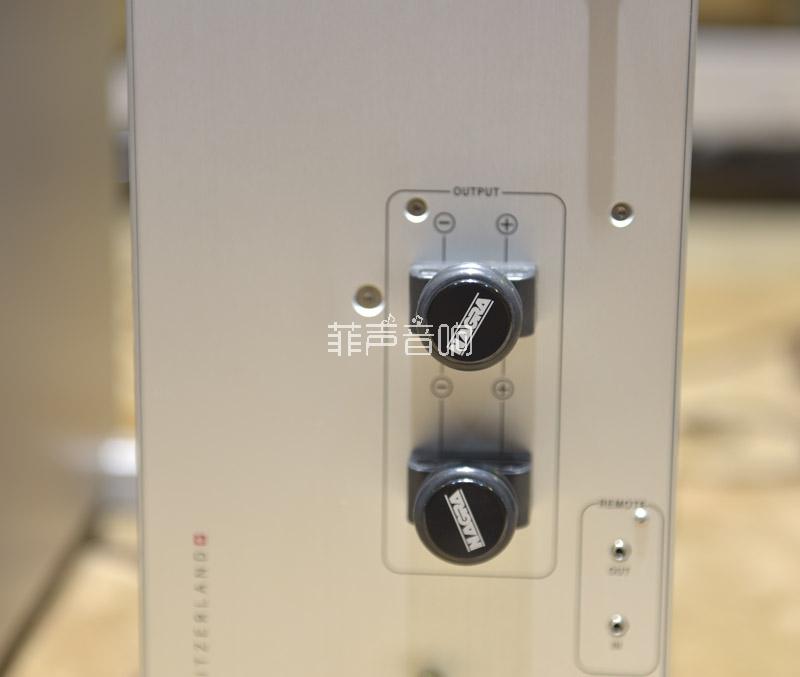

Remote in and out
|
|
1/8″ jacks in and out can trigger the amplifier on or off from a Nagra MPS or a home automation system
|
Power cord
|
|
IEC C19 this is not the standard IEC but a larger 20A plug
|

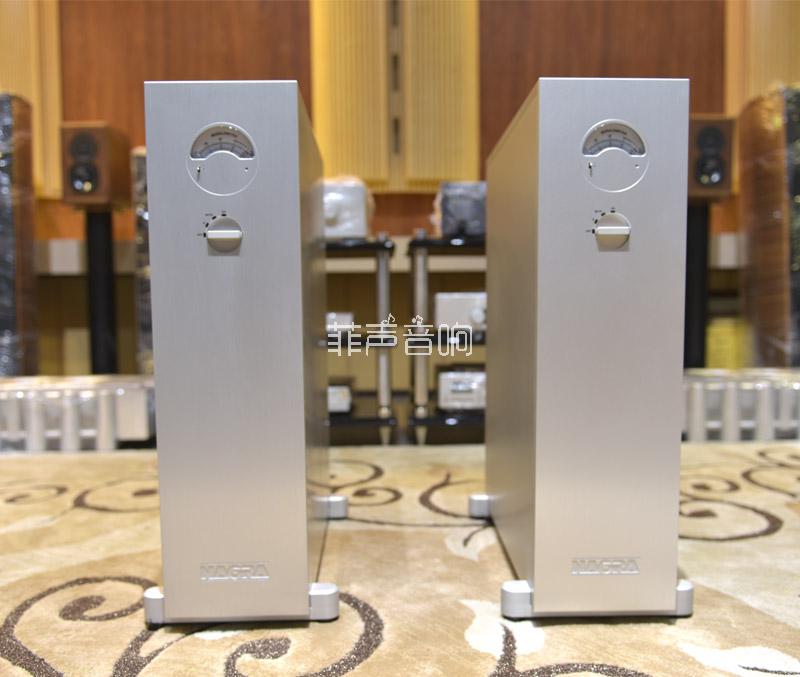

Monitoring
|
|
|
|
|
Nagra modulometer, precision measurement tool
|
|
|
Clipping LED
|
|
|
Intensity can be adjusted, from off to full bright
|
General
|
|
|
Consumption
|
|
1200 W max
|
|
|
less than 1 W in standby and Auto mode
|
Weight
|
|
56 Kg (123.4 lb) each unit
|
Size
|
|
Width 23.8 x Height 64.4 x Deepness 54.2 cm (9.3 x 25.3 x 21.3″)
|
Operating range
|
|
90 – 110 V or 110 -132 V or 180 – 264 V a.c.
|
|
|
50 – 60 Hz
|
