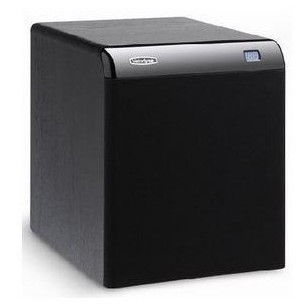

CHT-Q Series

Specifications

CHT-8Q

CHT-10Q

CHT-12Q

CHT-15Q

Amplifier:

(Class D)

360 watts Dynamic

180 watts RMS Power

390 watts Dynamic

195 watts RMS Power

450 watts Dynamic

225 watts RMS Power

1500 watts Dynamic

750 watts RMS Power

Woofer:

8” (20.3 cm)    forward firing

(6.3” piston diameter)

10” (24.5 cm)       forward firing

(8.2” piston diameter)

12” (30.5 cm)  forward firing

(9.7” piston diameter)

15” (38 cm)        forward firing

(12.7”piston diameter)

Magnet Structure:

2.5 lbs

2.5 lbs

3.5 lbs

4.4 lbs

Frequency Response:

Overall

+/- 3 dB

17 – 240 Hz

32 – 120 Hz

16 – 240 Hz

28 – 120 Hz

14.6 – 240 Hz

25 – 120 Hz

14 – 240 Hz

23 – 120 Hz

Voice Coil:

2-Layer copper

2-Layer copper

2-Layer copper

2.5” 4-Layer copper

Cone:

Reinforced fiber

Reinforced fiber

Reinforced fiber

Reinforced fiber

Speaker-Level Pass-Through:

Fixed at 120 Hz high-pass

Fixed at 120 Hz high-pass

Fixed at 120 Hz high-pass

Fixed at 120 Hz high-pass

LowPassCrossover:

40 Hz – 120 Hz adjustable

(12 dB octave,

24 dB ultimate)

40 Hz – 120 Hz adjustable

(12 dB octave,

24 dB ultimate)

40 Hz – 120 Hz adjustable

(12 dB octave,

24 dB ultimate)

40 Hz – 120 Hz adjustable

(12 dB octave,

24 dB ultimate)

Outputs:

Line-Level

Line-Level

Line-Level

Line-Level

Inputs:

Gold plated line-level

Gold plated line-level

Gold plated line-level

Gold plated line-level

Digital Phase:

0^º, 90^º, 180^º, 270^º

0^º, 90^º, 180^º, 270^º

0^º, 90^º, 180^º, 270^º

0^º, 90^º, 180^º, 270^º

Cabinet Design:

Extended Excursion Slot-loaded Bass-Reflex

Extended Excursion Slot-loaded Bass-Reflex

Extended Excursion Slot-loaded Bass-Reflex

Extended Excursion Slot-loaded Bass-Reflex

Auto On/Off

Yes

Yes

Yes

Yes

Removable Grille

Yes

Yes

Yes

Yes

Video Shielding

No

No

No

No

LED Display

Yes

Yes

Yes

Yes

Accessories:

Mic, mic stand and remote control

Mic, mic stand and remote control

Mic, mic stand and remote control

Mic, mic stand and remote control

Dimensions (H/W/D):

(cm) with grille

15.25” x 12” x 16.375”

38.7 x 30.5 x 41.6

16” x 15” x 18.25”

40.6 x 38.1 x 46.4

18” x 15” x 19.5”

45.7 x 38.1 x 49.5

21 x 18.375” x 20.75”

53.3 x 46.7 x 52.7

Shipping Weight:

(approx)

44 lbs. (2- kg)

55 lbs. (25 kg)

61 lbs. (28 kg)

75 lbs. (34 kg)

Warranty:

(parts/labor)

Three years (electronics)

Five years (drivers)

Three years (electronics)

Five years (drivers)

Three years (electronics)

Five years (drivers)

Three years (electronics)

Five years (drivers)

Specifications are subject to change without notice.
