Electrocompaniet这次一共推出ECI 6D与ECI 6DS两种版本,前者的「D」代表内建数类转换线路,後者的「DS」则除
了内建数类转换线路之外,还具备Wi-Fi与uPnP网路串流播放功能。

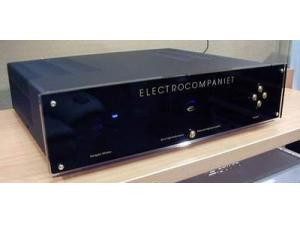

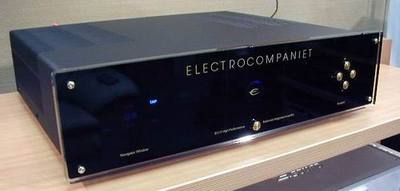

ECI 6D
Fully balanced integrated amplifier with built-in D/A converter
The ECI 6D is a powerful integrated amplifier, equipped with a number of analogue and digital inputs offering a wide
range of connectivity.
With its high performance sample rate converter and D/A converter the ECI 6D is able to improve all of your digital
sources like TV’s, cable- and satellite tuners, CD/DVD/Blu-Ray players and not to forget your computer and media
player. Independent of their native resolution all digital sources will be upsampled to 24bit/ 192kHz and can be
connected by SPDIF, USB or Toslink.
The new ECI 6D offers 2 x 125 Watts and is based on the successful ECI 5 MK II. To make it even better we have
equipped with an even better power supply and a more sophisticated preamplifier module. As a result we can offer you
an extremely substantial and dynamic amplifier, capable to control a wide range of speakers in the marked.
Analogue sources can be connected to one balanced (XLR) input and three single-ended (RCA) inputs. Two preamplifier
outputs, one balanced and one single ended, making sure the amplifier is prepared for future extensions.
All measurements are made at 120V / 240V //50Hz / 60Hz
Digital section:
D/A converter24 bit/192 kHz
Sample rate converter24bit / 192kHz
InputsSPDIF, 2x Toslink, 1x USB
USB: asynchronous up to 24bit/ 192kHz supported
SPDIF: 24bit/ 192kHz
Toslink: 24bit/ 96kHz
Preamplifier section
Input impedance ( Balanced input )47Kohm
Maximum input level10 Volt RMS
Noise floor ( 1Vrms, 20 - 20 kHz, balanced)
-135 dB
THD + N (1Vrms, 20 - 20 kHz, balanced) <0.004%
