Vivaldi CD/SACD 維瓦爾第
dCS 推出 維瓦爾第 一套共4件的數碼重播系統,代表了dCS 產品設計的頂尖及無妥協概念,帶領明日的數碼音響訂立一個新標準。
它包括4件獨立器材:CD / SACD 轉盤,解碼器,數碼升頻和主時鐘,設計堅固而優雅。維瓦爾第採用了dCS 最新的突破科技,包括新一代 dCS Ring DAC™,數碼處理平台及時鐘系統,無論在聲音表現或者規格上都是無可比擬的。
維瓦爾第 可播放來自不同訊源的音樂 - 實體光碟或數碼檔案,並可處理高解析度音樂格式至 DXD(24BIT / 352.8 及 384KS/s)及 DSD。藉著精良的 DSP 濾波及時鐘體系,使聽者能把器材調至個人喜好,而感受到音樂最細微的變化和感情。

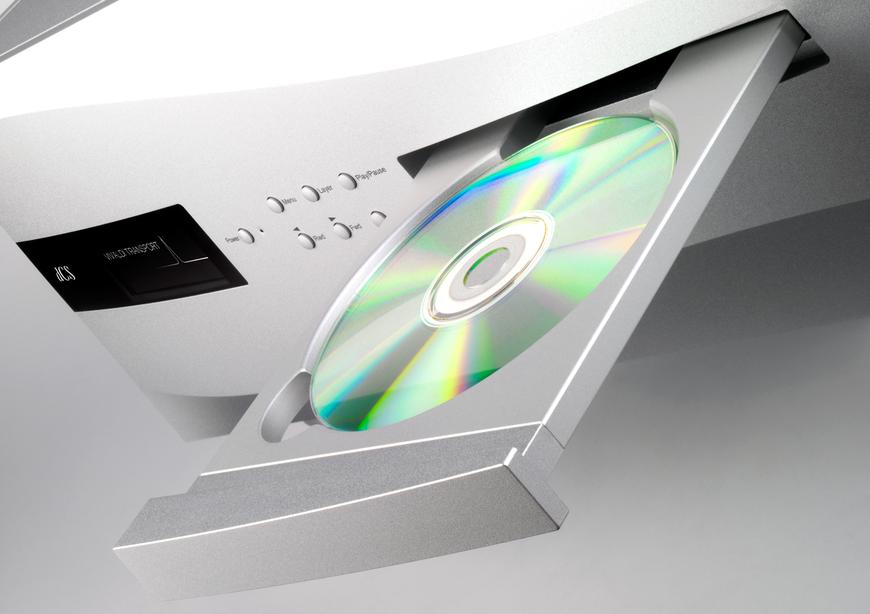

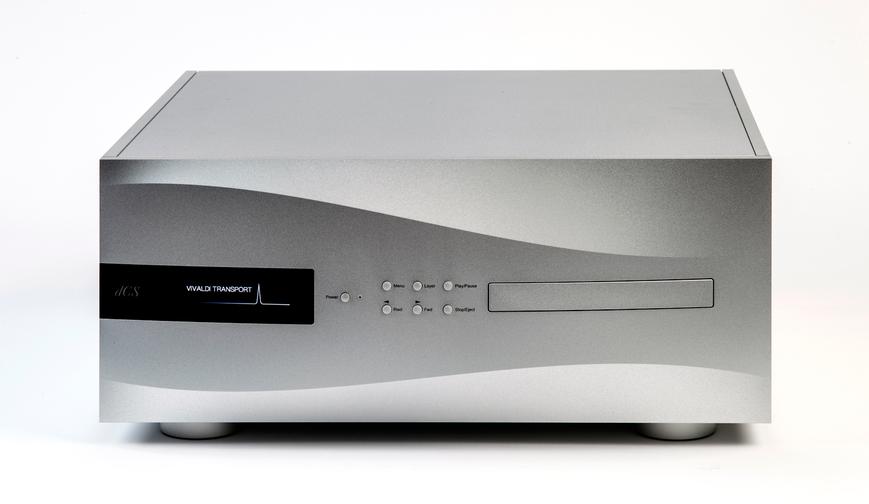

Vivaldi 維瓦爾第 CD/SACD 轉盤
�6�4以揭秘式的水平,抽 CD 及 SACD 上每個細節。所有訊號都是經由dCS 設計的電子控制去處理。它採用了 TEAC Esoteric VRDS Neo™ 機械傳動裝置,附有重型飛輪的無電刷電動機,使旋轉非常穩定,結構也異常牢固。
�6�4 採用雙AES 輸出,於重播 CD 或 SACD 時,均能輸出 dCS 加密 DSD(1 bit 於 2.822MS/s)至 dCS 的解碼器。它亦可選擇升頻 CD 訊號至 DXD。
Technical Specifications
Type | Upsampling CD/SACD Transport. | |
Colour | Silver or Black. | |
Mechanism | Dual laser CD/SACD mechanism (TEAC VRDS NEO™ VMK3). | |
Dimensions (WxDxH) | 444mm/17.5” x 435mm/17.2” x 196mm/7.8”. Allow extra depth for cable connectors. | |
Weight | 23.2kg/51.1lbs. | |
Digital Outputs |
1x Dual AES interface on 2x 3-pin male XLR connectors, outputs DSD/64 data, whether a CD or SACD is playing. A menu setting changes the format to DXD (24/352.8) when a CD is playing. 1x AES/EBU on 3-pin male XLR connector, outputs PCM at 16 bit/44.1kS/s, whether a CD or SACD is playing. 2x SPDIF on 1x RCA Phono and 1x BNC connectors. Each outputs PCM at 16 bit/44.1kS/s, whether a CD or SACD is playing. 1x SDIF-2 interface on 2x BNC connectors, outputs PCM at 16 bit/44.1kS/s, whether a CD or SACD is playing. |
|
Upsampling Rates | CD data may be upsampled to DSD/64 or DXD (24/352.8). | |
Word Clock I/O |
Word Clock input on 1x BNC connector, accepts standard Word Clock at 44.1, 88.2 or 176.4kHz. Sensitive to TTL levels.Word Clock input on 1x BNC connector, accepts standard Word Clock at 44.1, 88.2 or 176.4kHz. Sensitive to TTL levels. Word Clock output on 1x BNC connector. With the transport in Master mode, a TTL-compatible 44.1kHz Word Clock derived from the internal crystal oscillator is available on this output. |
|
Clock Accuracy | Better than +/-10 ppm when shipped (not temperature compensated). | |
Software Updates | Updates are loaded directly from CD-R. | |
Local Control | dCS Premium Remote handset is supplied with Vivaldi DAC. RS232 (controlled by a third party device). | |
Power Supply | Factory set for 100, 115, 220 or 230V AC, 49-62Hz. | |
Power Consumption | 28 Watts typical / 40 Watts maximum. |
