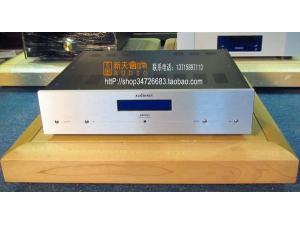

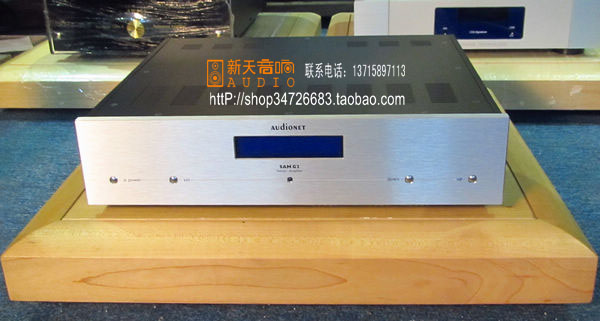

德国Audionet SAM G2 合并放大器
The SAM G2 combines tonal transparency with solid power. Its outstanding sound qualities perform on a level that more expensive combinations of pre- and power amplifiers cannot beat.
It offers a wide range of connections, including intelligent handling concepts, versatile extension capabilities and can be completely remote-controlled.
Words can hardly convey what the new SAM G2 is capable of achieving. With a spacious yet subtle sound, it plays transparently and spatially, sleekly, powerfully and is unshakeable, reproducing music in all its facets naturally and effortlessly. The new SAM G2 is even more committed and passionate than its predecessor. Indeed, its richness of information and tone, power and authority as well as its musical coherence will doubtless make it into a role model.
The new SAM G2 combines excellent performance and unmatchable sound properties with exceptionally compact dimensions. Such quality is scarce on the market, making the device ideally suited for domestic use and breath-taking musical reproduction. Its sound is characterized by speed, purpose and honesty, yet at the same time, full of charm and finesse. With its catching enthusiasm, this lively device produces a surprisingly realistic sound experience.
Function
microprocessor-controlled main amplifier
Output power
110 Watt into 8 Ohm
200 Watt into 4 Ohm
Frequency Range
0-500,000 Hz
Damping factor
> 1000 at 100 Hz
Channel separation
> 93 dB @ 1 kHz
THD + N
< -100 dB @1kHz, 25 W/4 Ohm
Harmonic distortion
k2 typ. -101 dB, k3 typ. -106 dB, @1kHz, 25 W/4 Ohm
Signal to noise ratio
> 103 dB (A-weighted)
Input impedance
Line-input: 10 kOhm, 150 pF
XLR-input: 3 kOhm, 170 pF
Inputs
5 pair RCA line, gold-plated, teflon insulated
1 XLR balanced, gold-plated
Outputs
2 pair WBT nextgen 4mm-jacks, gold-plated
1 pair RCA, gold-plated, teflon insulated (Pre-Out)
1 pair RCA , gold-plated, teflon insulated (Rec-Out)
1 Audionet Link, optisch
6.3 mm jack plug for headphone (switchable)
Mains
120 V or 230 V, 50...60 Hz
Power dissipation
1 W Stand X max. 600 W
Dimensions
430 mm x 120 mm x 360 mm
(W x H x D)
Weight
14.5 kg
