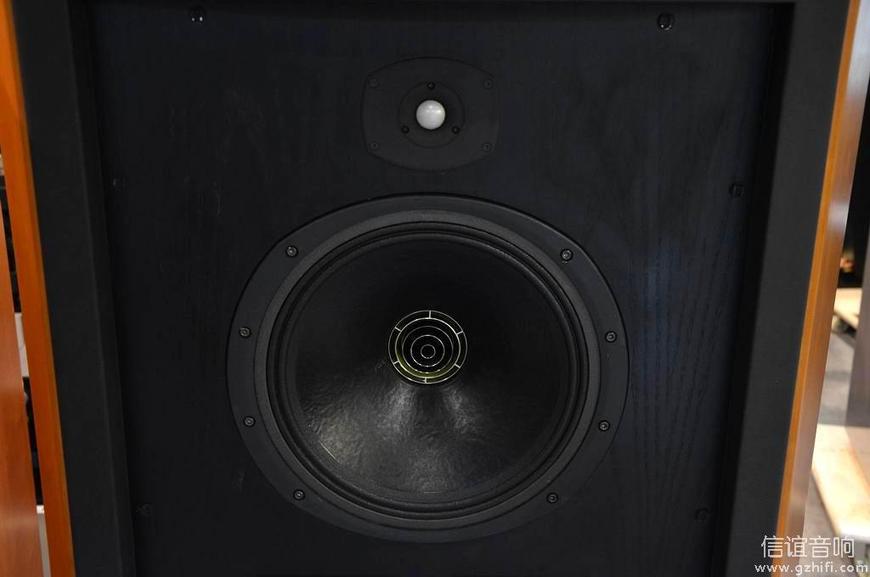

Supertweeter
|
1″ Aluminum Alloy Dome (TW0263)
|
50 micron Diaphragm, Neodymium Magnet
|
Midrange/Treble
|

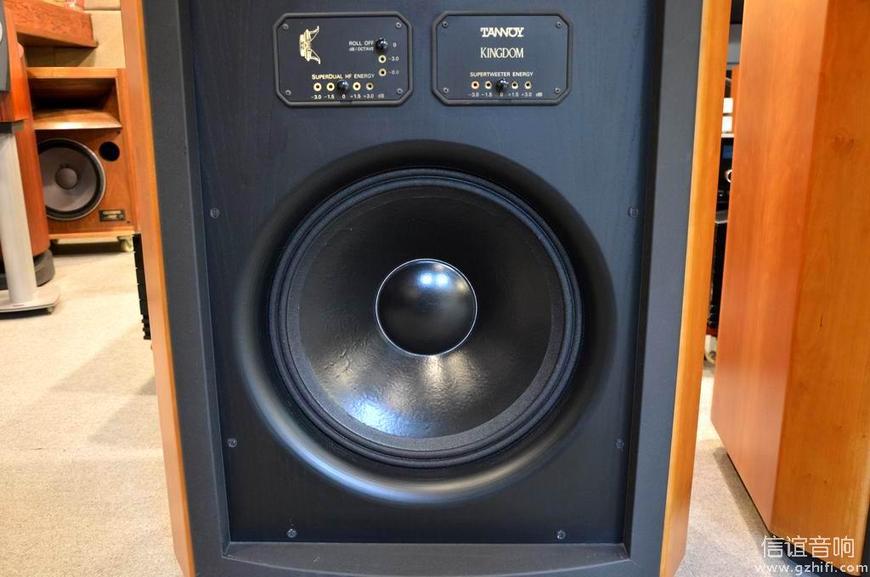

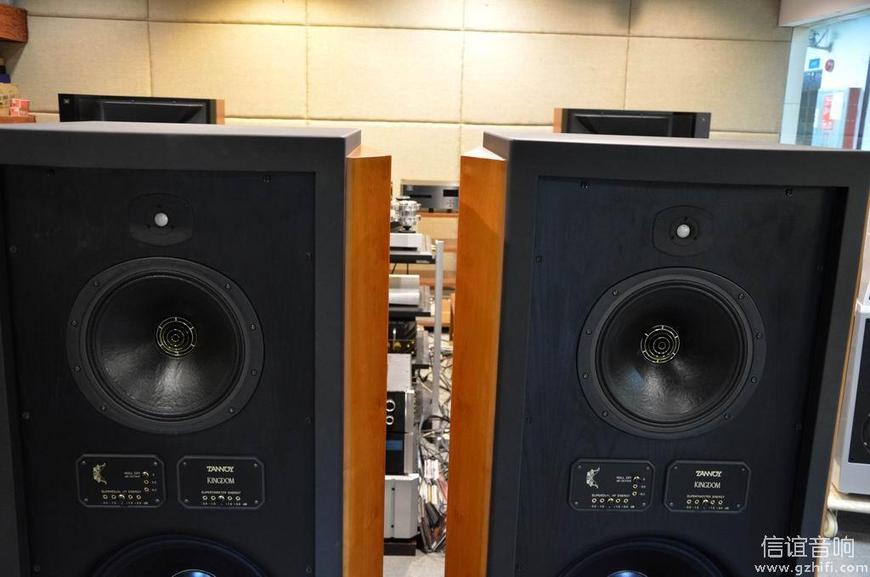

12″ SuperDual Dual Concentric (3144)
|
Ceramic Magnet, Tulip Waveguide Woofer: Paper Cone, 2″ Voice Coil Tweeter: 2″ Aluminum Alloy Dome, 64 micron Diaphragm Thickness
|

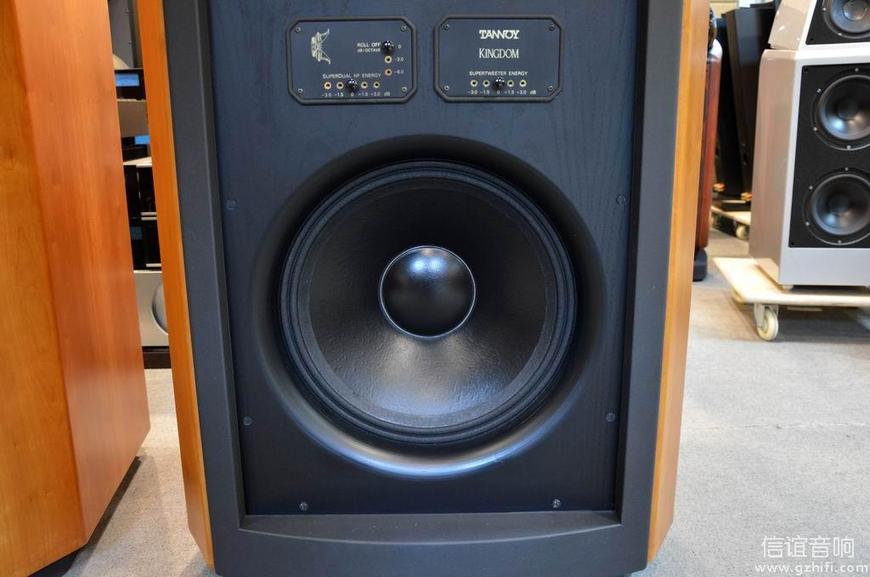

Bass
|
18″ Woofer (WO4503)
|
Paper Cone, 3″ Voice Coil
|
Impedance (Nominal)
|
8Ω
|
Sensitivity
|
92dB/2.83V/m
|
Recommended Amplifier Power (RMS)
|
20-500W
|
Power Handling (RMS)
|
300W
|
Power Handling (Peak)
|
750W
|
Maximum SPL (RMS, 300W, 1m)
|
117dB
|
Maximum SPL (Peak, 750W, 1m)
|
121dB
|
Dispersion
|
90º Conical
|
Crossover Frequencies
|
100Hz, 1.1kHz, 15kHz
|
2nd Order (Bass/Midrange), 2nd Order/1st Order (Midrange/Treble), 3rd Order (Supertweeter) P/N 121
|
