Scheme |
2 ways, 3 loudspeaker bass-reflex scheme, and a floor type |
Using unit |
For low-pass: 2234Hx2
For high regions: 2421A+ by radial horn |

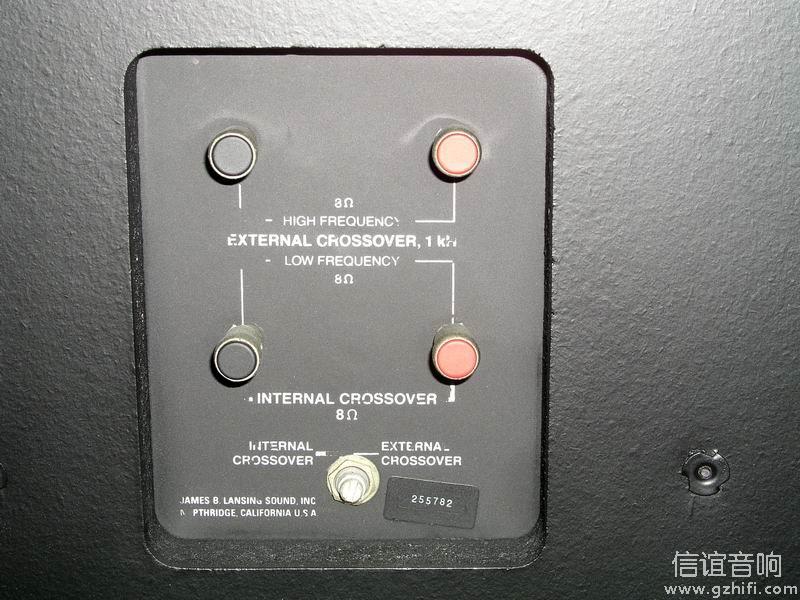

Cross over frequency |
1kHz |
Impedance |
8ohms |
Output sound pressure level |
96dB/W/m |
Allowable input |
375W (succession special NetWare program) |
Peek input |
2kW (<=10ms) |
Directivity |
100 degrees x 100 degrees (-6dB, 1.25kHz - 16kHz) |
Enclosure dimension |
280L |
Dimensions |
Width 965x height 908x depth of 515mm |
Weight |
114kg |
