瑞士 Goldmund高文 mimesis 20h nextgen 解码器

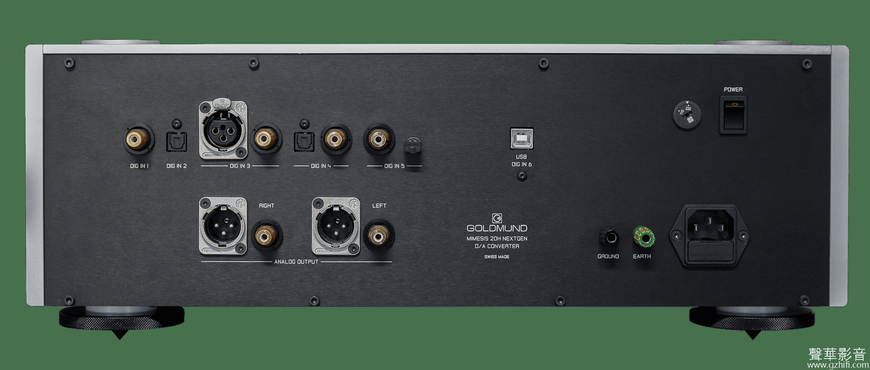

In 1: S/PDIF coaxial (RCA 75 Ohms).
In 2: Toslink Optical.
In 3: S/PDIF coaxial (RCA 75 Ohms) and AES/EBU balanced (XLR 110 Ohms).
In 4: S/PDIF coaxial (RCA 75 Ohms) and Toslink Optical.
In 5: S/PDIF coaxial (RCA 75 Ohms) and ATT Optical.
In 6: USB AUDIO (384 kHz/Bit depth up to 32 compatible DSD over PCM).
Any inputs from 1 to 5 can receive stereo audio encoded signal up to 192 kHz/Bit.
1 x RCA and 1 x XLR balanced (left).
1 x RCA and 1 x XLR balanced (right).
2 x Goldmund ultra-linear phase proprietary circuitry enhanced Alize 7 with enhanced dynamics.
Bandwidth: 20 Hz-20 kHz -0.2 dB typical.
Typical non-linearity: below 1 dB at -100 dB.
Typical phase error between channels: < 0.5 degrees.
Output voltage: 2 Vrms unbalanced, 4 Vrms balanced.
THD < 0,001 % (0 dBFS, 80 KHz bandwidth measurement).
6 x button Input channel selection (Ch1-Ch6) with separate LED signal locking (green).
1 x Mute button with LED signal standby (orange).
1 x standby button with LED signal standby (orange).
Separate LED display (orange).
3 Separate power transformers (25 W in use, 2 W in standby):
– 1 x transformer that is always under voltage;
– 2 x transformers that are cut off for energy savings when the unit is on standby mode.
Nominal AC line voltage: 115V / 230V.
Input voltage range: +/- 15%.Fuse 1.6 A.
44 W x 16 H x 37 D (cm).
20 kg.
