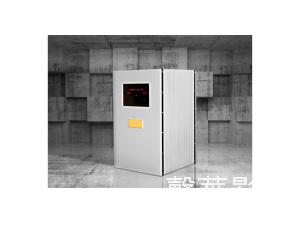

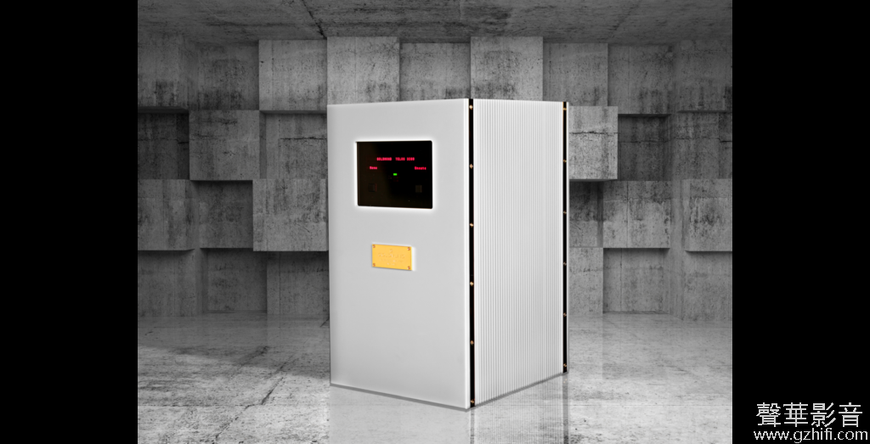

瑞士 Goldmund高文 Telos 3300 NextGen 单声道后级

瑞士 Goldmund高文 Telos 3300 NextGen 单声道后级

  • 价格请来电商议
  • 商品点击数：25811

简单描述：


聯繫人：陳先生 13262222225

營業電話：021-63663509


經銷地址：上海黄浦区中山南路1820号丽影音响广场1楼108馆 声华影音

OUTPUT POWER

Maximum power (IEC60065): 700 Wrms on 8 Ω / 1 % THD.



DAMPING FACTOR

350 at 1 kHz / 8 Ω.



OUTPUT NOISE FLOOR

Analog input terminated with RCA Shorting Caps, unloaded: < 5 μV from 20 Hz to 20 kHz.



GAIN

35 dB, +/- 9 dB (adjustable in steps of 3 dB for each input).



DISTORTION

IMD (SMPTE), unloaded: < 0.01 %.
THD+N, unloaded: < 0.005 % from 20 Hz to 20 kHz at 30 Vrms output.

REAR PANEL

Power cord: universal socket 3 lugs, 16 A.
Main fuses
AC black GND binding post (with bridge connection).
Green-yellow AC earth binding post (with bridge connection).
2 x output binding posts (red & black).
1 x output speaker Lemo 4B type connector.
Analog input RCA unbalanced connector.
Analog input XLR balanced connector.
Digital input and output RCA connectors.
RS232 command connector.



INPUT
Max level before clipping:

Analog input: 2 Vrms.
Digital input: 0 dBFS.

OUTPUT
Max level before clipping:

1 % THD, unloaded: 300 Vpp.



RATED POWER CONSUMPTION

IEC 60065, 1/8 Output Power at 8 Ω: 500 W.



POWER SUPPLY

Nominal line voltage: 115 V or 230 V.
Input voltage range: +/- 15 %.



DYNAMIC RANGE

22 kHz measurement bandwidth (flat), true RMS unloaded: 116 dB.



DIMENSIONS & WEIGHT

39 W x 48 D x 69 H (cm).
165 kg.
