当前位置: 首页 > 产品橱窗 > 功放专区 > 瑞士 Goldmund高文 Telos 1000 NextGen 单声道后级

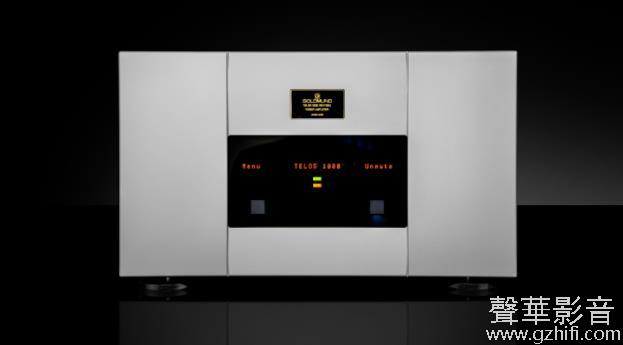

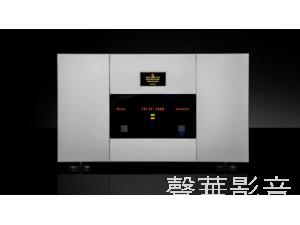

瑞士 Goldmund高文 Telos 1000 NextGen 单声道后级

瑞士 Goldmund高文 Telos 1000 NextGen 单声道后级

  • 价格请来电商议
  • 商品点击数：24763

简单描述：


聯繫人：陳先生 13262222225

營業電話：021-63663509


經銷地址：上海黄浦区中山南路1820号丽影音响广场1楼108馆 声华影音

OUTPUT POWER

Maximum power (IEC60065): 365 Wrms on 8 Ω / 1 % THD.



DAMPING FACTOR

600 at 1 kHz / 8 Ω.



OUTPUT NOISE FLOOR

Analog input terminated with RCA Shorting Caps, unloaded: < 3 μV from 20 Hz to 20 kHz.



GAIN

35 dB.



DISTORTION

IMD (SMPTE), unloaded: < 0.05 %.
THD+N, unloaded: < 0.05 % from 20 Hz to 20 kHz at 30 Vrms output.



REAR PANEL

Power cord: universal socket 3 lugs.
Main fuse (4 A slow-blow for 230 V) ; (8 A slow-blow for 115 V).
AC black GND binding post.
Ground lift switch.
2 x output binding posts (red & black).
1 x output speaker Lemo 4B type connector.
Analog RCA input (unbalanced connector).
Analog XLR input (balanced connector).
Digital input and output RCA connectors.
RS232 command connector.



INPUT
Max level before clipping:

Analog input: 1 Vrms.
Digital input: -6 dBFS.



OUTPUT
Max level before clipping:

1 % THD, unloaded: 170 Vpp.



RATED POWER CONSUMPTION

IEC 60065, 1/8 Output Power at 8 Ω: 220 W.



POWER SUPPLY

Nominal line voltage: 115 V or 230 V.
Input voltage range: +/- 15 %.



DYNAMIC RANGE

22 kHz measurement bandwidth (flat), true RMS unloaded: 110 dB.



DIMENSIONS & WEIGHT

44 W x 49 D x 28 H (cm).
60 kg.
