瑞士 Goldmund高文 Telos 590 NextGen ii合并机

瑞士 Goldmund高文 Telos 590 NextGen ii合并机

  • 价格请来电商议
  • 商品点击数：25274

简单描述：


聯繫人：陳先生 13262222225

營業電話：021-63663509


經銷地址：上海黄浦区中山南路1820号丽影音响广场1楼108馆 声华影音

OUTPUT POWER

Maximum power (IEC60065): 2 x 215 Wrms on 8 Ω / 1 % THD.



DAMPING FACTOR

600 at 1 kHz / 8 Ω.



OUTPUT FLOOR NOISE

Analog input terminated with RCA Shorting Caps, unloaded: < 10 μV from 20 Hz to 20 kHz.



GAIN

35 dB.



DISTORTION

IMD (SMPTE), unloaded: < 0.02 %.
THD+N, unloaded: < 0.08 % from 20 Hz to 20 kHz at 30 Vrms output.

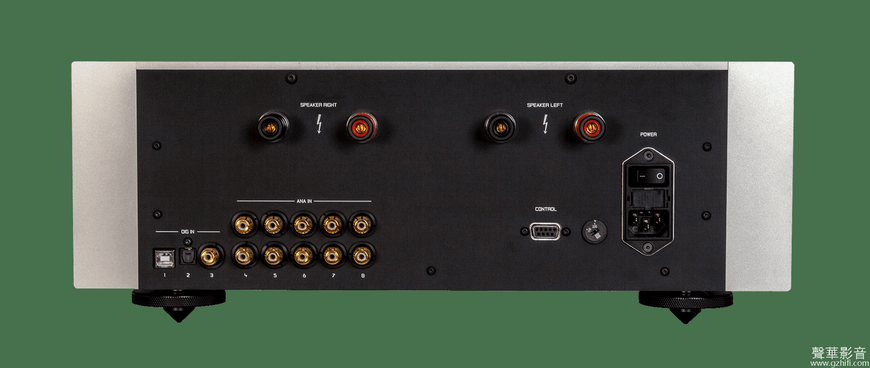

REAR PANEL

2 x output binding posts (left & right).
On/Off power switch key.
Voltage input selector.
RS232 Command connector.
1 x USB device: Audio Class 2.0 (no driver required on Mac OS X as of v.10.6.4 nor on Linux, driver required only for Windows, contact your Goldmund representative):
– Sample rate up to 384 kHz/Bit depth up to 32.
– DSD64, DSD128 over PCM capabilities.
1 x Toslink Optical.
1 x Digital S/PDIF coaxial RCA 75 Ohms.
5 x Analog RCA (left & right).



INPUT
Max level before clipping:

Analog input: 1 Vrms.
Digital input: -6 dBFS.



OUTPUT
Max level before clipping:

1 % THD, unloaded: 170 Vpp.



DYNAMIC RANGE

22 kHz measurement bandwidth (flat), true RMS unloaded: 100 dB.



POWER SUPPLY

Nominal line voltage: 115 V or 230 V.
Input voltage range: +/- 15 %.



RATED POWER CONSUMPTION

IEC 60065, 1/8 Output Power at 8 Ω: 250 W.



DIMENSIONS & WEIGHT

44 W x 41.5 D x 16.5 H (cm).
20 kg.
