【只要类比】家访 cychaudiofan(8)

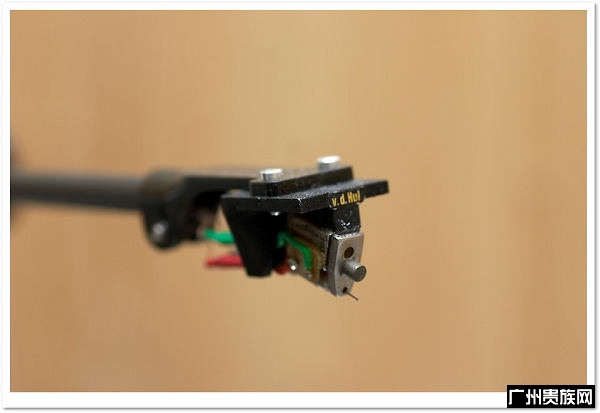

唱头:van den Hul GRASSHOPPER III GLA

搭配气浮正切臂的是van den Hul GRASSHOPPER III GLA,GRASSHOPPER III有三个版本,分别是CHA(EUR 4,610)、SLA(EUR 3,315)与GLA(EUR 4,145)。C表铜线圈、S表银线圈、G表金线圈、H表高输出、L表低输出、A表合金磁铁。因此黄医师的GRASSHOPPER是低输出的金线圈版本。

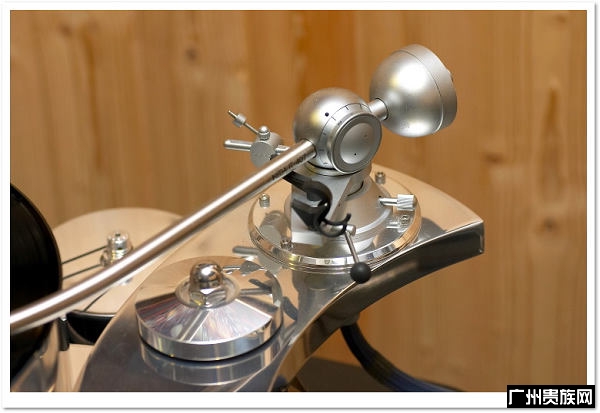

唱臂:IKEDA IT407

Type: dynamic balance
Full length: 388mm
Effective length: 307mm
Overhang: 12mm
Tracking error: +2 degrees to +1degrees 32'
Stylus pressure range: 0 to 5g. (0.5g /step)
Diameter of mounting hole: 31mm
Arm height range: 25mm to 60mm
Maximum board thickness: 35mm
Applicable cartridge weight: 6g to 38.5g (including headshell)

唱头:IKEDA 9R

Output voltage: (5cm/sec.45' 1kHz)/0.17mV
Load impedance: 3Ω
Stylus pressure: 2.0gr
Dynamic compliance: (1000Hz) /6×10 to the minus sixth power/dyne
Frequency range: 10 to 45.000Hz
Channel separation: (1kHz)/27dB
Output balance: 1dB
Stylus tip: special ellipse
Empty weight: 32.9gr
Built-in shell
Stylus replacement: unit replacement
