DS Master 1（唱头套装）SET

DS Master 1（唱头套装）SET

  • 价格请来电商议
  • 商品点击数：29032

简单描述：光学唱头＋唱放（套装） DS Audio Optical Cartridge DS Master1 Set Master 1 Cartridge Master 1 Equalizer ( 1 Set )


联系人：蔡先生 18680575330（微信同号） 吴先生 18420450897


联系地址：广州市大沙头21号海印广场首层 凯韵音响


DESCRIPTION

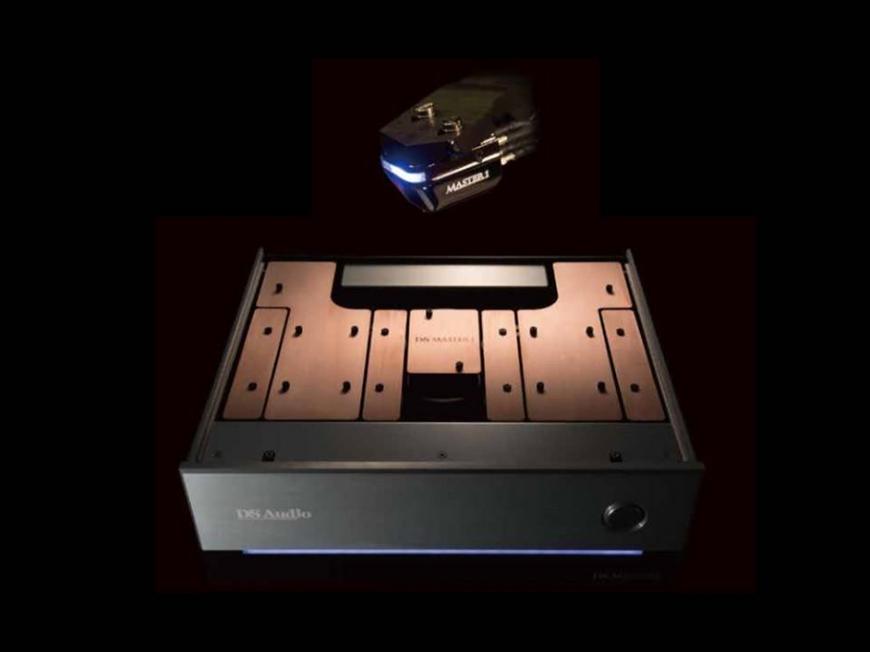

The flagship of the DS Audio product lines, the new DS Master1 optical cartridge features the improved optical-mechanical design, wire-suspension, Sapphire cantilever and the micro-ridge stylus. The Master1 preamp/equalizer has the fully independent dual-mono discrete circuits with the single-ended RCA and balanced XLR outputs, as well as three low frequency cutoff points. The DS Master1 system will be marketed starting from May 1st, 2016.


Cartridge

Newly designed “Advanced Optical-mechanical” system The “advanced optical-mechanical” design enables us to position our newly designed micro-optic sensor unit closer to the stylus, resulting in a much shorter optical path length. Together with its wire-suspended cantilever, the DS Master1 provides the listener the superb channel separation and sound quality.

The flagship of the DS Audio product lines, the new DS Master1 optical cartridge features the improved optical-mechanical design, wire-suspension, Sapphire cantilever and the micro-ridge stylus. The Master1 preamp/equalizer has the fully independent dual-mono discrete circuits with the single-ended RCA and balanced XLR outputs, as well as three low frequency cutoff points. The DS Master1 system will be marketed starting from May 1st, 2016.

Micro-ridge stylus mounted to a sapphire cantilever The Micro-ridge stylus has a minimum-curvature radius and is mounted to a sapphire cantilever. This super low mass generator, which eschews magnets and coils and is free of ultra-sonic ringing, lets the Master1 reproduce every bit of musical information with stunning nuance and brilliant detail for flagship-level performance.

Advanced Material Science During the development phase of the DS Master1, no detail was overlooked. In the past two years, every aspect of the design and parts were re-evaluated to ensure the highest rigidity possible in the cartridge. From its Ultra duralumin body to its amethyst power indicator window, we have carefully selected each component to ensure that we have a built a phono cartridge of the highest rigidity and quality.
Cartridge
Fully discrete


Equalizer

Fully discrete dual-mono circuitry with three dedicated power supplies The DS Master1’ s matching preamp/equalizer features expertly designed, fully independent dual-mono analog circuits. To achieve flagship-level performance, each channel has its own dedicated power supply to deliver more than ample power with the third power supply dedicated to the cartridge LED drive system of the DS Master1 phono cartridge.

Massive 24 kilogram / 53 pound unit weight Its robust weight is the result of sophisticated casework, the twelve 120K μf electrolytic capacitors and three transformers used in the DS Master1 preamp/equalizer. To achieve the lowest possible impedance, pure copper bus-bars provide connection between the bank of capacitors.

Your choice of outputs and low frequency response The DS Master1 preamp/equalizer features three sets of RCA and XLR outputs and three separate low frequency cut-off points. Each low frequency contour is accessed by its own dedicated single-ended RCA or balanced XLR output for a total of six sets of dual-mono outputs.
