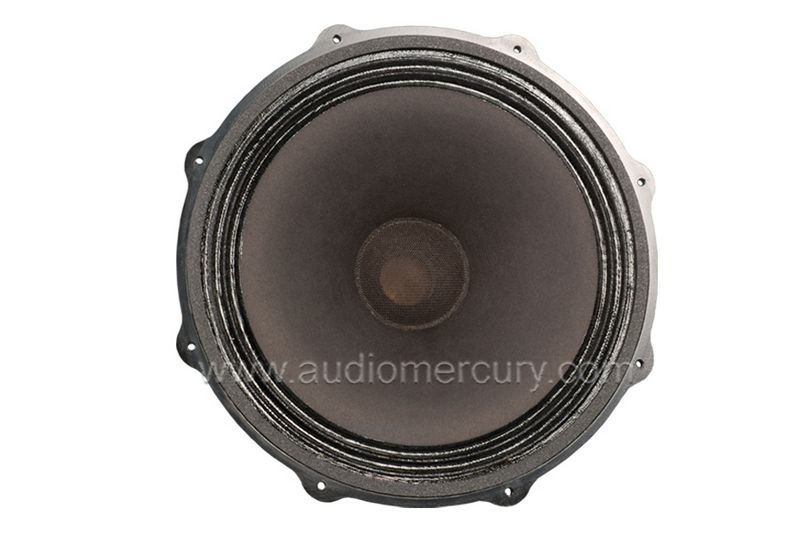

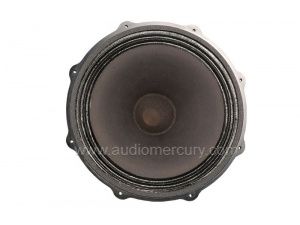

Supravox赛博威声 285GMF 12英寸中低音喇叭
|
285GMF 中低音喇叭参数
|
|||
|
Efficiency 1W/1m at Fs
效率 1W/1m at Fs
|
99dB
|
Fs
|
47Hz
|
|
Frequency response
频响
|
40~7kHz
|
Re
|
6.5Ω
|
|
Impedance
阻抗
|
8Ω
|
Qts
|
0.38
|
|
Power max. RMS
最大不失真功率
|
70W
|
Qe
|
0.39
|
|
Weight
重量
|
3.5kg
|
Qm
|
8
|
|
Suspension
悬边
|
3层纸摺边
|
Vas
|
150L
|
|
Linear excursion
线性位移
|
8mm
|
Bl
|
10.7
|
|
Magnet diameter
磁铁直径
|
120mm
|
Cms
|
0.6
|
|
Magnetic field
磁通量
|
1.4T
|
Mms
|
20g
|
|
Diameter HP
喇叭直径
|
290/307mm
|
Sd
|
471cm2
|
|
Frame thickness
盆架厚度
|
铝合金 8mm
|
|
|
|
Diameter fixation holes
安装直径
|
294mm
|
|
|
|
Diameter drilling enclosure
箱体开孔直径
|
280mm
|
|
|
|
Depth HP
喇叭深度
|
128mm
|
|
|
|
备注：
上述之参数及曲线图由LAUD2软件测量所得，均由Supravox原厂提供。
|
|||
|
零售价RMB：￥6,864/对pair
|
|||
