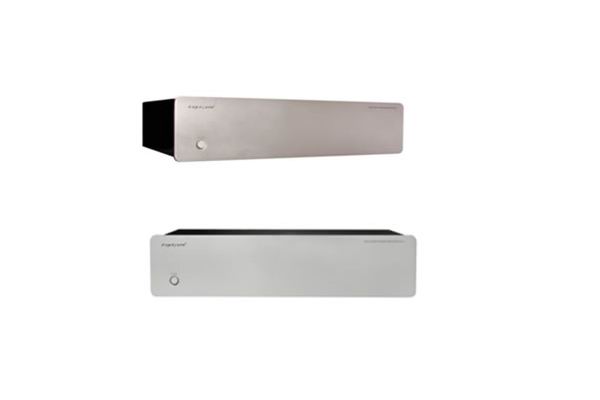

Model: XXVIII Power Amplifier

Description:

• High quality custom-made parts featuring two large toroidal transformers and power supplies for each channel
• Only carefully selected bipolar transistors used.  Each channel has its own dedicated PCB
• Sophisticated circuitry incorporating non-invasive overload/overheat protection
• Bi-Wire speaker outputs using high quality multi-contact sockets
• RCA and XLR inputs
• High quality aluminum case and front panel

Specifications:

• Power Output: 70 Watts per channel, 8 ohms
• Input Impedance: 18K ohms at 1kHz
• Frequency Response: -3dB at 3Hz and 62kHz, ref 1kHz
• Total Harmonic Distortion: <0.02% at rated power, 1kHz
• Signal to Noise Ratio: >110dB A weighted, ref rated output
• Channel Separation: >70dB 20Hz to 20kHz (Typically >95dB @ 1kHz)
• Power Consumption: <350VA, 8 ohm load, both channels driven
• Dimensions (H x W x D): 115 x 440 x 300mm
• Nett Weight (unpacked): 11 kgs
• Gross Weight (packed): 13 kgs
