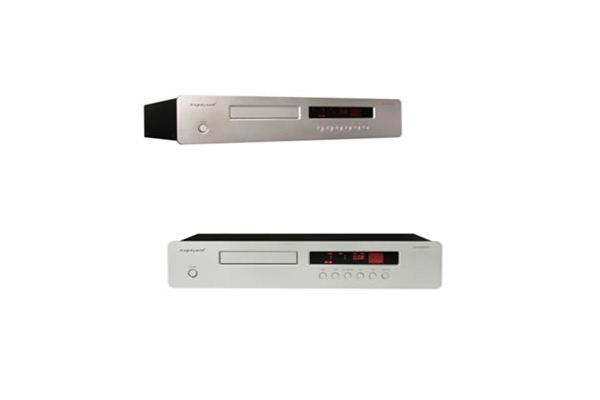

Model: XXII CD Player

Description:

• CD text display for display of artist information
• Twin Burr-Brown PCM1704 mono 24 true multi-bit DACs fitted, providing very high resolution
• Highly optimized discreet transistor audio output circuitry with multiple stages of regulation
• Large toroidal power transformer with separate windings for CD transport mechanism and audio stages.  High capacity supply for audio stages
• Employment of a high-stability crystal clock reference with dedicated power supply regulator for transport and DAC to ensure low jitter performance
• High quality double-sided PCB for optimum layout and screening
• High quality aluminum case and front panel
• Full-function remote control

Specifications:

• Output Level: 2V RMS ref 1kHz full scale (0dB)
• Frequency Response: ±0.25dB (20Hz – 20kHz)
• Total Harmonic Distortion: <0.003% ref 1kHz full scale (0dB)
• Signal/Noise: >108dB, A weighted
• Cross Talk: >100dB, @1kHz
• Dynamic Range: >104dB
• Digital Outputs: SP/DIF, Coaxial and “Toslink” optical (Internally switchable on/off)
• Power Consumption: <25VA
• Dimension (H x W x D): 90 x 440 x 300mm
• Nett Weight (unpacked): 5 kgs
• Gross Weight (packed): 7 kgs
