SST與ST系列不同之處
Bryston最新的SST-C(SST是Super Stuart Taylor的縮寫,C則是Consumer)系列包括2B100T去「:麼說,寫過豬一部擴大機之後,其他型號擴大機「雖不重(二聲道,每聲道100瓦)、3B(二聲道,每聲道150瓦)、4B(二聲道,每聲道300瓦)6B、(三聲道,每聲道300瓦)、7B(單聲道,每聲道700瓦)、9B(五聲道,每聲道140瓦)以及14B SST(二聲道,每聲道600瓦)。在這麼多型的後級中,它們與上一代後級不同的是:第一、使用速度反應更快,更線性,更可靠的功率輸出晶體,獲得更精確的高頻段表現(THD與IMD低於0.001%)。第二、將電源濾波電容量增加為二倍(超過100,000MFD),對於低頻段的控制力更好。第三、地迴路的佈局做得更好,免除地迴路切換開關的使用,使得雜訊降得更低(低於-118dB)。
Power Output
300 watts per channel into 8 ohms
500 watts per channel into 4 ohms

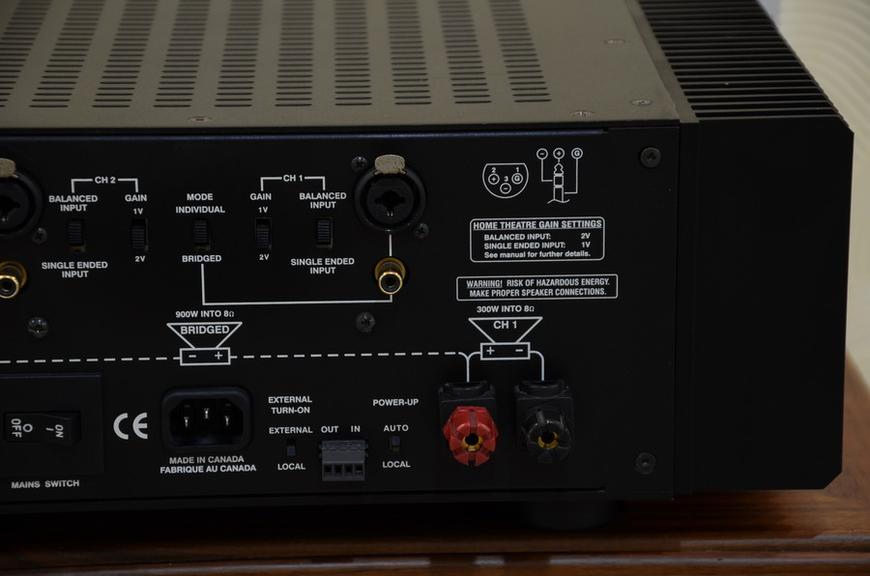

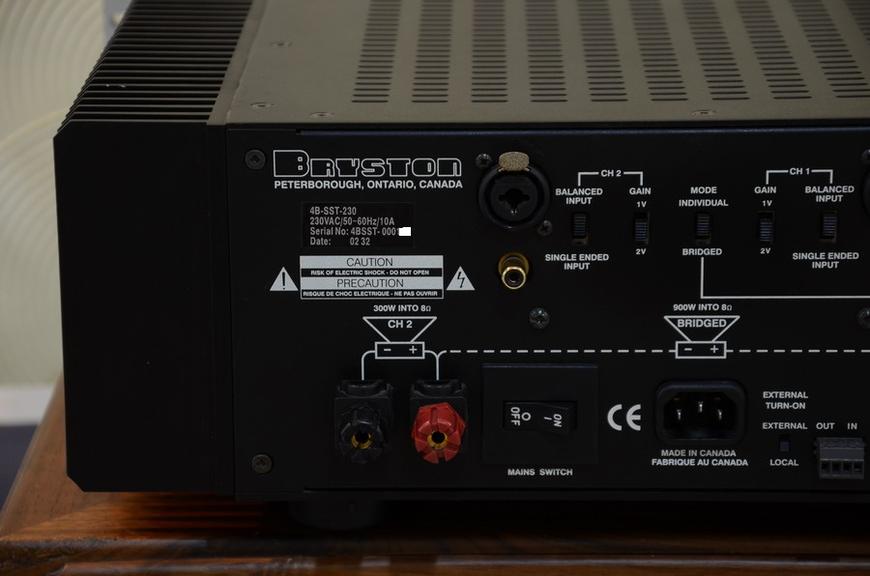

Gain Select and Sensitivity
29dB - 1.8Vin = 300W @ 8 Ohms - (1V Position)
23dB - 3.6Vin = 300W @ 8 Ohms - (2V Position)
Input Impedance
50 Kohms single ended
20 Kohms balanced
Distortion IM or THD+noise
< 0.005% 20Hz to 20kHz at 300 watts into 8 W
< 0.007% 20Hz to 20kHz at 500 watts into 4 W
Noise Measured with input shorted - 20Hz to 20kHz.
>110dB below rated output 29dB gain (- 75dBu)
>113dB below rated output 23dB gain (- 78dBu)
Slew Rate > 60 volts per microsecond
Power Bandwidth < 1 Hz to over 100 kHz
Damping Factor Over 500 at 20 Hz, ref. 8 ohms
Dimensions L x H x D

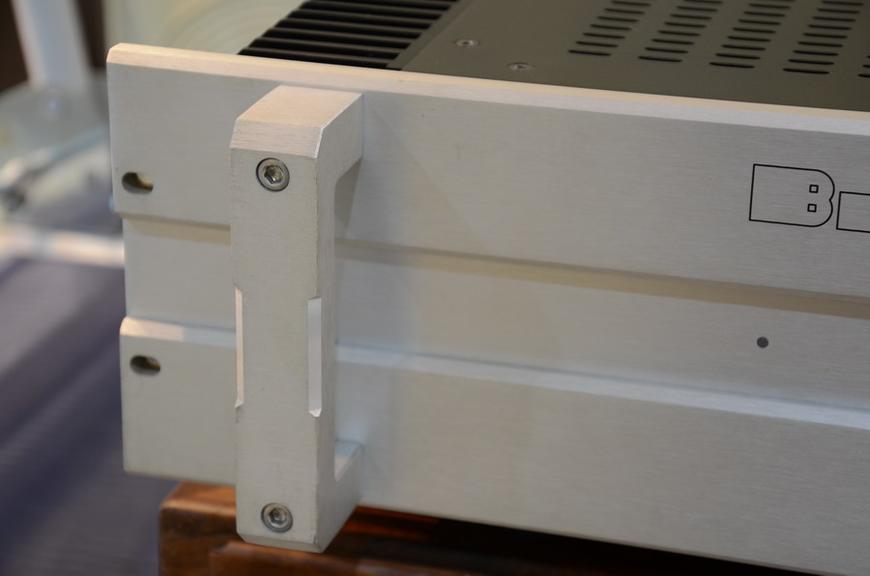

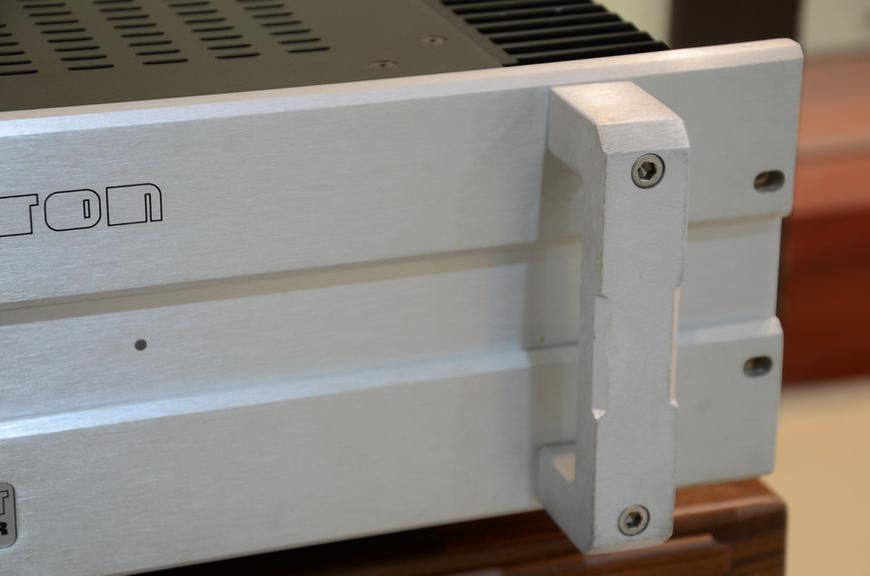

19” version with handles -
48.3 x 13.3 x 43.8cm - 19” x 5.25” x 17.25“
mounted rack depth - 40.1cm - 15.75"
17” version
43.2 x 13.3 x 40.1cm - 17” x 5.25” x 15.75“
Weight: approx. 22kg - 50 lbs
Power Consumption & Heat Load
At Idle - 170 Watts
Max. Heat Dissipation - 580 Btu/Hr.
2 channels @ 300W @ 8 ohms - 1280 Watts
Max. Heat Dissipation 8 ohms - 2320 Btu/Hr.
2 channels @ 500W @ 4 ohms - 2100 Watts
Max. Heat Dissipation 4 ohms - 3750 Btu/Hr.
Bridged @ 900W @ 8 ohms - 2040 Watts
Max. Heat Dissipation 8 ohms - 3890 Btu/Hr.
