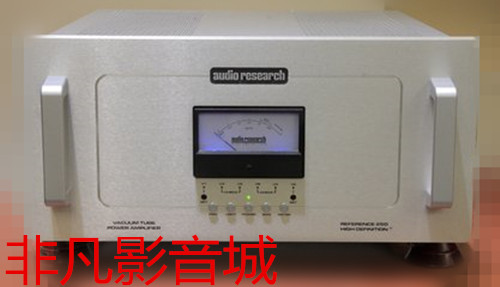

美国 ARC Audio Research Reference 250 真空管单声道后级放大器

美国 ARC Audio Research Reference 250 真空管单声道后级放大器

  • 价格请来电商议
  • 商品点击数：33399

简单描述：


联系人：郑小姐 13553388317 营业电话：0754-86312838


联系地址：广东省汕头市龙湖区珠江路46号创意大厦音响广场一楼19号

本店淘宝店：https://ffyyc.taobao.com/

频率响应非常优异

ARC二当家，额定输出250瓦，但这还不是极限，真正遇到Clipping的底限可到270瓦，所以250瓦只算转速飙到红线区，270瓦才算催到底。频率响应呢？0.5Hz~110kHz，代表REF 250可以把高分辨率音乐的高频宽尽可能地发挥，甚至超过SACD规格的100kHz。想搬动这250瓦的真空管后级，最好不要一个人动手，重量33.2公斤

使用全平衡线路

以往ARC使用的功率管大多是6550，不过新一代的ARC后级大概都换上了KT120功率管，比6550效率更好，功率更大，输出级用上三对（6只）KT120，驱动级则是一对KT120，输入级和自家前级一样，使用一对6H30，整流管则是6550C。延续传统之处还有全平衡线路，ARC一直是全平衡的信奉者，REF 250不仅使用全平衡线路，输入端子还很有洁癖，只有一组平衡输入。

详细参数

POWER OUTPUT: 250 watts per channel continuous from 20Hz to 20kHz. 1kHz total harmonic distortion typically 0.5% at 250 watts, below .04% at 1 watt.  Approximate actual power available at “clipping” 270 watts (1kHz).  (Note that actual power output is dependent upon both line voltage and “condition” i.e.: if power line has high distortion, maximum power will be affected adversely, although from a listening standpoint this is not very critical.)
POWER BANDWIDTH: (-3dB points) 5Hz to 70kHz.
FREQUENCY RESPONSE: (-3dB points at 1 watt) 0.5Hz to 110 kHz.
INPUT SENSITIVITY: 2.4V RMS Balanced for rated output. (25.5 dB gain into 8 ohms.)
INPUT IMPEDANCE: 200K ohms Balanced.
OUTPUT TAPS: 4, 8, 16 ohms.
OUTPUT REGULATION: Approximately 0.9dB 16 ohm load to open circuit (Damping factor approximately 10).
OVERALL NEGATIVE FEEDBACK: 8.8dB.
SLEW RATE:  20 volts/microsecond.
RISE TIME: 1.5 microseconds.
HUM & NOISE: Less than 0.2mV RMS – 110dB below rated output (IHF-A weighted, input shorted, 16 ohm output).
POWER SUPPLY ENERGY STORAGE:  Approximately 900 joules.
POWER REQUIREMENTS: 105-130VAC 60Hz (260-250VAC 50Hz) 770 watts at rated output, 1000 watts maximum, 380 watts at “idle,” 1 watt off.
TUBES REQUIRED: 3 Matched pair KT120 (Power output V1-6); 1 Matched pair KT120 (Driver V8-9); 2 6H30 (Gain stage V7 and Regulator Driver V10); 1 6550C (Regulator V11).
DIMENSIONS: 19" (48.3 cm) W x 8.75" (22.2 cm) H x 19.5" (49.5 cm) D. Handles extend 1.5" (3.8 cm) forward.
WEIGHT: 73 lbs. (33.2 kg) Net; 88 lbs. (40 kg) Shipping.
