设计

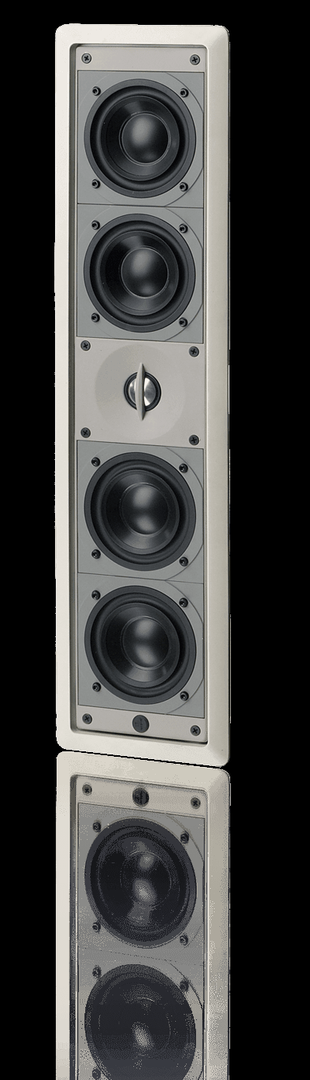

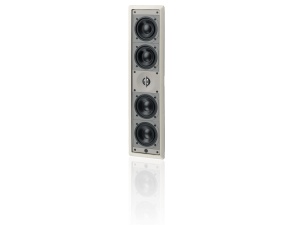

5-driver, 2-1/2-way in-wall left / center / right, die-cast chassis / mounting bracket

分频器

2nd-order electro-acoustic at 2.0 kHz; 2nd-order electro-acoustic at 700 kHz (outside bass drivers)

频率响应   On-Axis

±2 dB from 105 Hz - 22 kHz

频率响应   30° 离轴

±2 dB from 105 Hz - 20 kHz

高音单元

25-mm (1 in) S-PAL™ dome, die-cast heatsink faceplate

Mid/Bass Frequency Driver

Two 115-mm (4-1/2 in) mineral-filled polypropylene cones

低音单元

Two 115-mm (4-1/2 in) mineral-filled polypropylene cones

低音下潜

75 Hz (DIN)

灵敏度   房间/消声室

91 dB / 87 dB

阻抗

Compatible with 8 ohms

合适的放大器功率范围 Range

15 - 150 watts

最大输入功率

100 watts

颜色

White, paintable

重量

9.9 lbs. (4.5 kg)

Overall 尺寸

24.125" (61.3cm) Height
6.0625" (15.4cm) Width

Cut-Out 尺寸

23.125" (58.7cm) Height
5.125" (13.0cm) Width

最小安装深度
Depth required is the distance
between 1/2" drywall, or similar material.

2.625" (6.7cm)
