设计

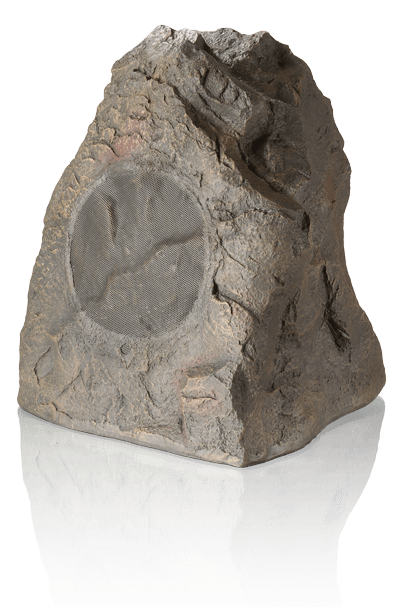

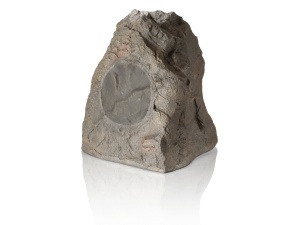

Single speaker system with stereo L/R inputs, 3-driver, 2 x 2-way coaxially mounted high-frequency drivers, weather, water, UV-resistant sealed enclosure, self draining fissures

分频器

Two 2nd-order electro-acoustic at 2.5 kHz

频率响应   On-Axis

±2 dB from 63 Hz - 20 kHz

频率响应   30° 离轴

±2 dB from 63 Hz - 18 kHz

高音单元

Two 25-mm (1 in) PTD™ domes

低音单元

Dual voice-coil, 190-mm (7-1/2 in) ICP™ cone, die-cast chassis

低音下潜

42 Hz (DIN)

灵敏度   房间/消声室

90 dB (groundplane measurement) /

阻抗

Compatible with 4 ohms Mono; 8 ohms / channel Stereo Input

合适的放大器功率范围 Range

15 - 120 watts Mono; 15 - 60 watts / channel Stereo Input

最大输入功率

80 watts Mono; 40 watts / channel Stereo Input

颜色

Northeastern Dark Granite, Fieldstone

重量

17 lbs. (7.7 kg)

尺寸   高x宽x深

15.125" × 13.375" × 13"
(38.5cm × 34.0cm × 33.0cm)
