设计

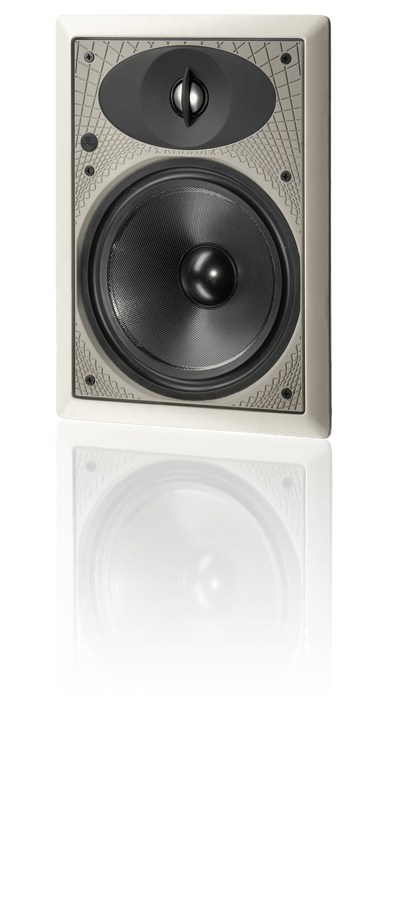

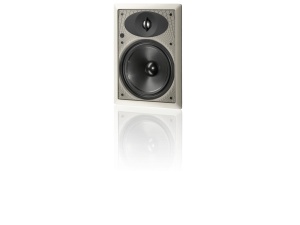

2-driver, 2-way in-wall / in-ceiling, die-cast chassis / mounting bracket

分频器

2nd-order electro-acoustic at 2.0 kHz

频率响应   On-Axis

±2 dB from 60 Hz - 22 kHz

频率响应   30° 离轴

±2 dB from 60 Hz - 20 kHz

高音单元

25-mm (1 in) S-PAL™ dome, die-cast heatsink

Mid/Bass Frequency Driver

210-mm (8 in) mineral-filled polypropylene cone

低音下潜

40 Hz (DIN)

灵敏度   房间/消声室

91 dB / 87 dB

阻抗

Compatible with 8 ohms

合适的放大器功率范围 Range

15 - 150 watts

最大输入功率

100 watts

颜色

White, paintable

重量

7.5 lbs. (3.4 kg)

Overall 尺寸

12.5625" (31.9cm) Height
9.125" (23.2cm) Width

Cut-Out 尺寸

11.5" (29.4cm) Height
8.0625" (20.5cm) Width

最小安装深度
Depth required is the distance
between 1/2" drywall, or similar material.

2.625" (6.7cm)

最少内部容积

0.70 cu ft (20 L)
