设计

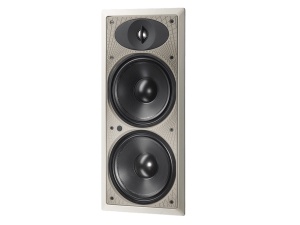

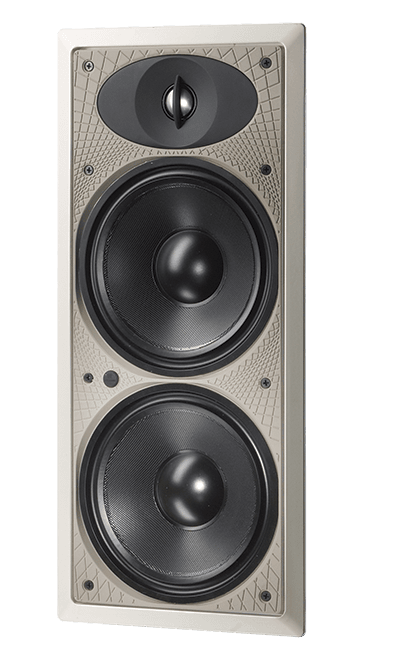

3-driver, 2-way in-wall / in-ceiling, die-cast chassis / mounting bracket

分频器

2nd-order electro-acoustic at 2.0 kHz

频率响应   On-Axis

±2 dB from 55 Hz - 22 kHz

频率响应   30° 离轴

±2 dB from 55 Hz - 20 kHz

高音单元

25-mm (1 in) S-PAL™ dome, die-cast heatsink

Mid/Bass Frequency Driver

Two 210-mm (8 in) mineral-filled polypropylene cones

低音下潜

35 Hz (DIN)

灵敏度   房间/消声室

94 dB / 90 dB

阻抗

Compatible with 8 ohms

合适的放大器功率范围 Range

15 - 200 watts

最大输入功率

150 watts

颜色

White, paintable

重量

12.8 lbs. (5.8 kg)

Overall 尺寸

20.0625" (51.0cm) Height
9.0625" (23.1cm) Width

Cut-Out 尺寸

20.125" (51.0cm) Height
9.125" (23.1cm) Width

最小安装深度
Depth required is the distance
between 1/2" drywall, or similar material.

3" (7.6cm)

最少内部容积

1.4 cu ft (40 L)
