泽森09发烧沙龙之一——喇叭花配ASR(5)

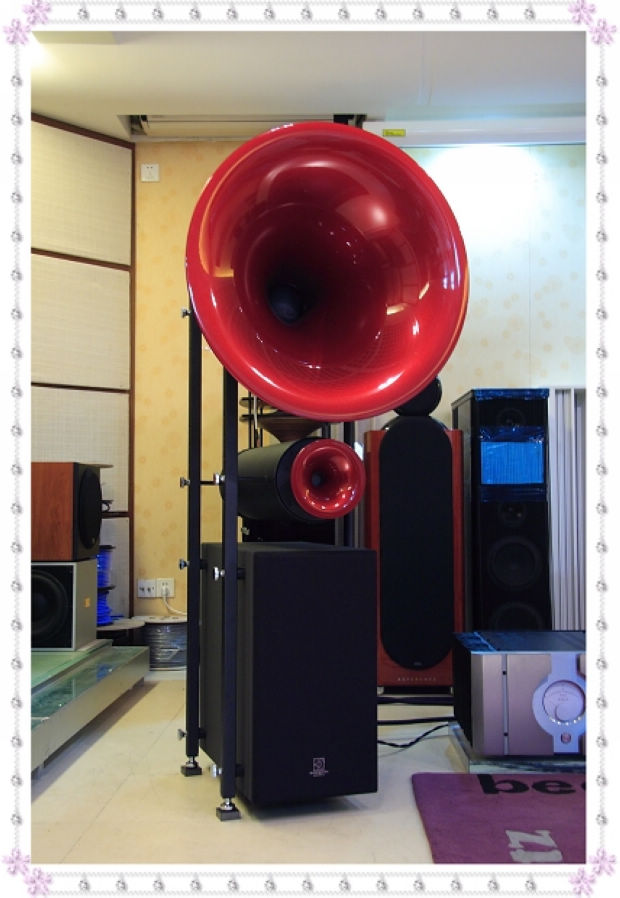

Avantgarde Acoustic(喇叭花)Duo Omega音箱

SYSTEM DATA

Frequency range – bass   20 - 350 Hz
Power handling   100 Watt
Sensitivity (1 Watt / 1m) > 107 dB
Crossover freq.   170 / 2,000 Hz
Nominal Impedance   18 Ohm
Recomm. Amplifiers   > 10 Watt
Recomm. Room size   > 20 qm / 200 sq. ft
CDC (Controlled Dispersion
Characteristics)
  yes

Horns

Opening   180°
Diameter midrange 670 mm / 26.4 in
Diameter tweeter 180 mm / 7.1 in
Horn length
midrange 370 mm / 14.5 in
  tweeter 85 mm / 3.3 in
Horn area midrange
0.353 sqm
  tweeter 0.025 sqm

Diameter Treiber

midrange 170 mm / 6.5 in
  tweeter 1“

BASS DRIVERS

Drivers per speaker 2
Power handling - RMS 500 Watt
Nominal Diameter 250 mm
Voice coil diameter
70 mm
Magnet diameter 192 mm
Magnet weight 6.5 kg

AMP MODULE

Modules per loudspeaker 1
Amp power - RMS 250 Watt
Filter capacitors 40,000 μF
High Quality toroidal transformer 270 VA
Active crossover variable, 60-350 Hz
Subsonicfilter 20, 30, 40 Hz
Audio input transformer yes
SoftStart circuit yes
REAL TIME control yes
Line- and speaker level input switchable
12V remote power-up integrated

DIMENSIONS / WEIGHT

Dimensions (per speaker) width 670 mm / 26 in
  depth 680 mm / 26 in
  height 1,555 mm / 61 in
Weight per Speaker approx. 75 kg
