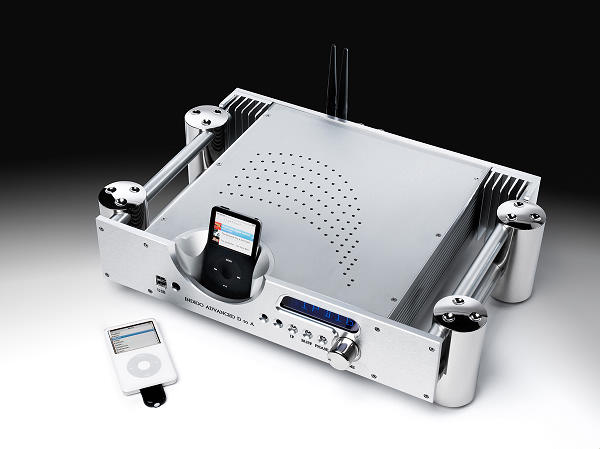

CHORD发表了Indigo Advanced D to A,订价约为USD15,000,其可接受数位与类比的讯号,内建iPod dock,数位核心使用最新的field programmable gate array devices (FPGA) ,与QBD76相同。数位输入包括了:SPDIF、AES、optical、USB、iPod、Bluetooth (高品质A2DP),直接进入到Chord的DAC处理。类比输入有XLR与RCA,并可与Bypass结合,此外前面版还有耳机输出。
规格
・HARMONIC DISTORTION:
< -103 dB (1kHz, 24-Bit @ 44.1KHz Sample Frequency)
< -110dB (100Hz, 24-Bit @ 44.1KHz Sample Frequency)
・SIGNAL TO NOISE RATIO:> 120dB
・CHANNEL SEPARATION:> 125dB @ 1KHz
・DYNAMIC RANGE:120dB

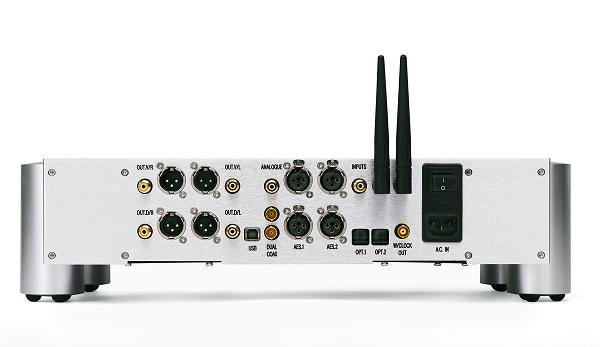

・SWITCHABLE DIGITAL INPUTS:
2 x 75Ω SP/DIF BNC Coax
2 x AES Balanced XLR Input
2 x Plastic fibre optic ( TOSlink )
1 x USB ( B type )
1 x Bluetooth supporting A2DP Stereo Audio
1 x Digital iPod Dock input
1 x Wireless iPod digital input
・SWITCHABLE ANALOGUE INPUTS:
1 x RCA/XLR stereo analogue input
1 x Analogue iPod Dock input
・ANALOGUE OUTPUTS
Stereo RCA Phono and balanced XLR Line Level Direct Outputs
Stereo RCA Phono and balanced XLR Volume Control Outputs
・HEADPHONE OUTPUT:1 x 1/4” headphone jack socket
・USB HUB ( rear USB input must be connected to PC ):
2 x Front panel USB sockets
1 x iPod dock sync
・RAM BUFFER:3 Settings - off, minimum & maximum
・PHASE SWITCH:2 Settings - Positive or Negative output phase
・SAMPLE FREQUENCIES:
32KHz - 96KHz Single Cable,
176KHz & 192KHz Dual Cable ( Dual data mode )
・LINE LEVEL OUTPUT:6V rms. Balanced. 3V rms. unbalanced
OUTPUT IMPEDANCE:75Ω (short circuit protected)
・DIMENSIONS IN MM:420mm x 355mm x 88mm (Width x Height x Depth)
・POWER CONSUMPTION:30W
・OPERATING VOLTAGE:85 - 270V AC (50-60Hz) auto switching
・WEIGHT:12 Kg
