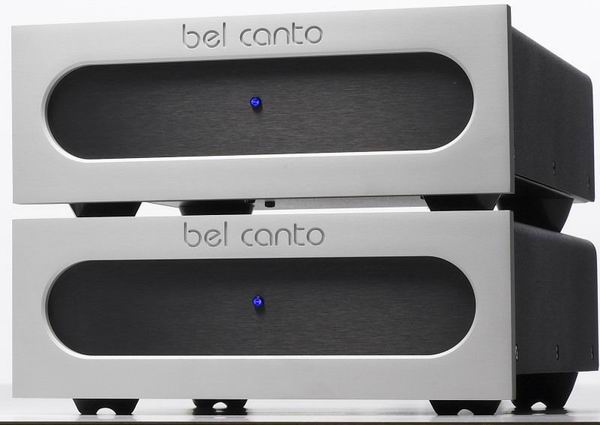

來自美國的Bel Canto發表了全新e.One系列,目前包括三台後級:S500 (USD 2,995/台)、REF500 (USD4,990/1對)、REF1000 MKII (USD 5,990/1對)。e.One系列的擴大機使用類比交換式放大技術(analog switching amplifier technology),並採用全平衡設計的輸入級,高檔的元件,包括Caddock電阻、Solid Electrolytic電容、低噪音的電源供應。REF1000的用家若要升級到REF1000 MKII,費用為USD 2,000。
REF1000 MKII Mono Amplifier
Power Output:>1000W into 4 ohms, >500W into 8 ohms
Minimum Load:2 ohms
Frequency Response:+/-0.5dB 20Hz-20KHz, all loads
THD+N 0.007% 1W, 1KHz, 4 ohms
IMD (CCIF):0.0007%, 1W, 14:15KHz, 4 ohms
Output noise:90uVRMS A-weighted 10Hz-20KHz
Voltage gain:27dB (single ended or balanced input)
Damping factor:>1000
Output Impedance at 100Hz:<8 milliohms
Dynamic Range:120dB
Input Voltage for Max Output:3Vrms
Input connections:Single-ended RCA or balanced XLR
RCA input impedance:100Kohms
Balanced input impedance:200Kohms
Output connections:1-set WBT 5-way safety binding posts
Standby Power:15W
Size:8.5x3.5x12[inches], 216x76x305[mm] (WxHxD)
Weight:15lbs, 7Kg
REF500 Mono Amplifier
Maximum Power Output:500W 4 ohms, 250W 8 ohms
Power Output 1% THD:450W 4 ohms, 225W 8 ohms
Frequency Response:+/-0.5dB 20Hz-20KHz, all loads
THD+N 0.007% 1W, 1KHz, 4 ohms
IMD (CCIF):0.0007%, 1W, 14:15KHz, 4 ohms
Output noise:90uVRMS A-weighted 10Hz-20KHz
Voltage gain:27dB (single ended or balanced input)
Damping factor:>1000
Output Impedance at 100Hz:<8 milliohms
Dynamic Range:120dB
Input Voltage for Max Output:3Vrms
Input connections:Single-ended RCA or balanced XLR
RCA input impedance:100Kohms
Balanced input impedance:200Kohms
Output connections:1-set WBT 5-way safety binding posts
Standby Power:15W
Size:8.5x3.5x12[inches], 216x76x305[mm] (WxHxD)
Weight:15lbs, 7Kg
S500 Dual Mono Amplifier
Maximum Power Output:500W 4 ohms, 250W 8 ohms
Power Output 1% THD:370W 4 ohms, 200W 8 ohms
Minimum Load:3 ohms
Frequency Response:+/-3 dB 1.5Hz-70KHz, all loads
THD+N 0.003% 1W, 1KHz, 4 ohms
IMD (CCIF):0.0003%, 1W, 14:15KHz, 4 ohms
Output noise:35uVRMS A-weighted 10Hz-20KHz
Voltage gain:27dB (single ended or balanced input)
Damping factor:>1000
Output Impedance at 100Hz:<8 milliohms
Dynamic Range:121dB
Input Voltage for Max Output:2Vrms
Input connections:Single-ended RCA or balanced XLR
RCA input impedance:100Kohms
Balanced input impedance:200Kohms
Output connections:2-sets WBT 5-way safety binding posts
Standby Power:19W
Size:8.5x3.5x12[inches], 216x76x305[mm] (WxHxD)
Weight:15lbs, 7Kg
