挪威 音乐之旅 ECI-6D 合并功放 加解码一体机 全新正品保修
Electrocompaniet这次一共推出ECI 6D与ECI 6DS两种版本，前者的「D」代表内建数类转换线路，後者的「DS」则除了内建数类转换线路之外，还具备Wi-Fi与uPnP网路串流播放功能。

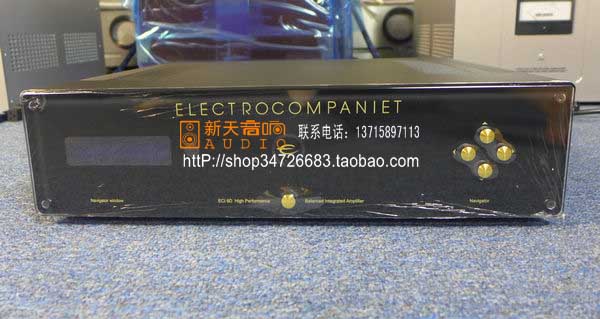

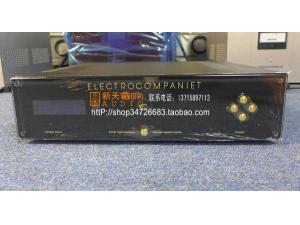

ECI 6D
Fully balanced integrated amplifier with built-in D/A converter
The ECI 6D is a powerful integrated amplifier, equipped with a number of analogue and digital inputs offering a wide range of connectivity.
With its high performance sample rate converter and D/A converter the ECI 6D is able to improve all of your digital sources like TV’s, cable- and satellite tuners, CD/DVD/Blu-Ray players and not to forget your computer and media player. Independent of their native resolution all digital sources will be upsampled to 24bit/ 192kHz and can be connected by SPDIF, USB or Toslink.
The new ECI 6D offers 2 x 125 Watts and is based on the successful ECI 5 MK II. To make it even better we have equipped with an even better power supply and a more sophisticated preamplifier module. As a result we can offer you an extremely substantial and dynamic amplifier, capable to control a wide range of speakers in the marked.
Analogue sources can be connected to one balanced (XLR) input and three single-ended (RCA) inputs. Two preamplifier outputs, one balanced and one single ended, making sure the amplifier is prepared for future extensions.
All measurements are made at 120V / 240V //50Hz / 60Hz
Digital section:
D/A converter24 bit/192 kHz
Sample rate converter24bit / 192kHz
InputsSPDIF, 2x Toslink, 1x USB
USB: asynchronous up to 24bit/ 192kHz supported
SPDIF: 24bit/ 192kHz
Toslink: 24bit/ 96kHz
Preamplifier section
Input impedance ( Balanced input )47Kohm
Maximum input level10 Volt RMS
Noise floor ( 1Vrms, 20 - 20 kHz, balanced)
-135 dB
THD + N (1Vrms, 20 - 20 kHz, balanced) <0.004%
Gain (Balanced)0 dB
Amplifier section
Output Impedance< 0,02 Ohm
Frequency response1 – 150 kHz
Channel separation> 120 dB
THD ( 20 - 20 kHz)< 0.004%
Maximum peak current>100A
Damping factor 8 ohm load>350
I Input sensitivity 120W output1.3Vrms
Input sensitivity HT 120W output1Vrms
Gain HT Inputx36 (31 dB)
Rated output power
8 ohms2 x 125 W
4 ohms2 x 200 W
2 ohms2 x 370 W
Power consumption
110 W
Standby1W
(no load or signal)
Dimensions
Width465 mm / 18.3 inches
Depth405 mm / 16 inches
Height128 mm / 5 inches
Weight20Kg / 44 lbs.
