Form |

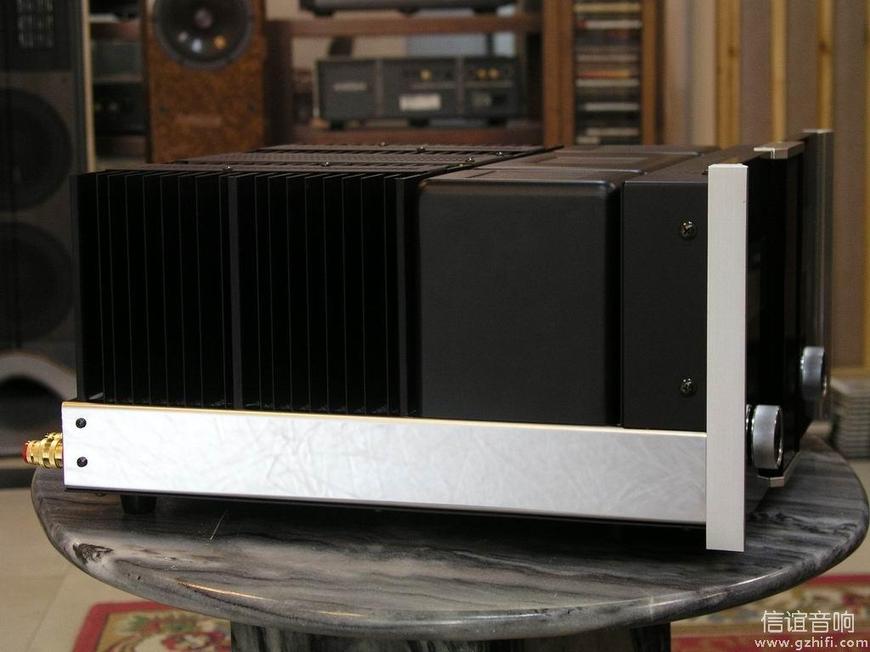

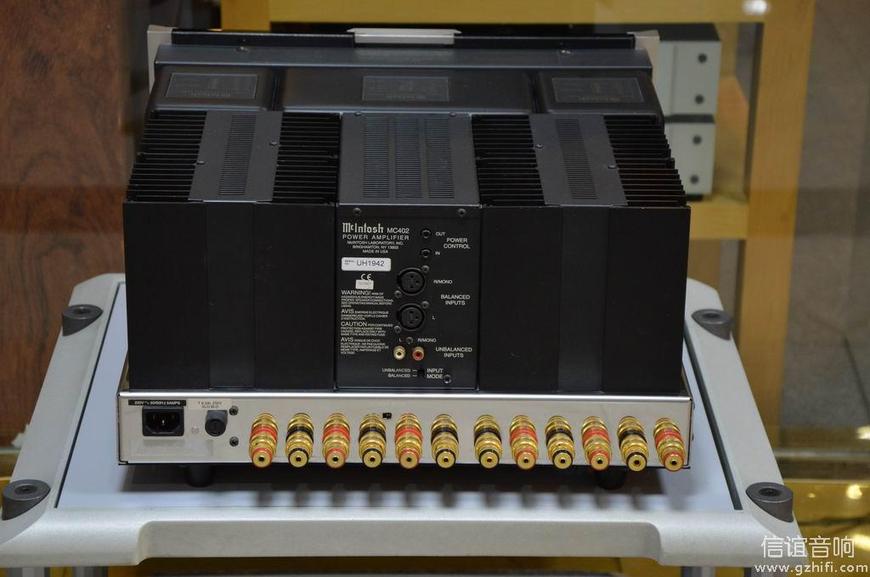

Stereo power amplifier |
Output power |
stereo: 400W+400W (2ohm, 4ohm, 8ohm)
mono parallel: 800W (1ohm, 2ohm, 4ohm) |
Frequency characteristic |
20Hz-20kHz+0 -0.25 dB
10Hz-100kHz+0 -3.0 dB |
THD |
A maximum of 0.005% (250mW - Output power) |
Cross modulation distortion |
A maximum of 0.005% (at the time of SMPTE and an Output power) |

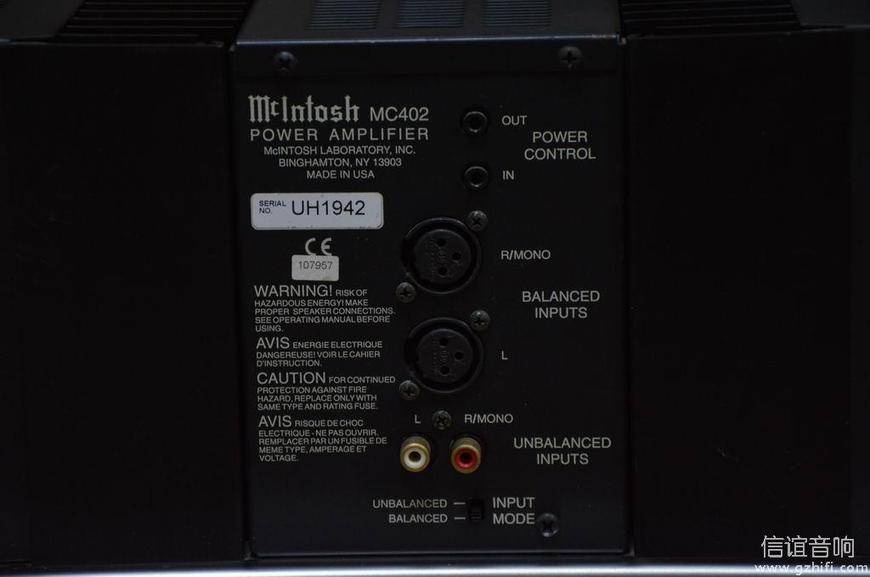

Input sensitivity/impedance |
Unbalance: 1.9V / 10kohm (with VR)
Balance: 3.8V / 20kohm (with VR) |
SN ratio (A-criteria) |
Unbalance: 85dB
Balance: 115dB |
Dumping factor |
100 (8ohm) |
Power guarding |
Prevention from clipping, THD <=2% (less than over-drive 14dB, 1kHz) |
Power source |
AC100V, 50Hz/60 Hz, 12A (Underwriters Laboratories/CSA specification) |
Dimensions |
Width 445x height 226x depth of 445mm |
Weight |
47.6kg |
