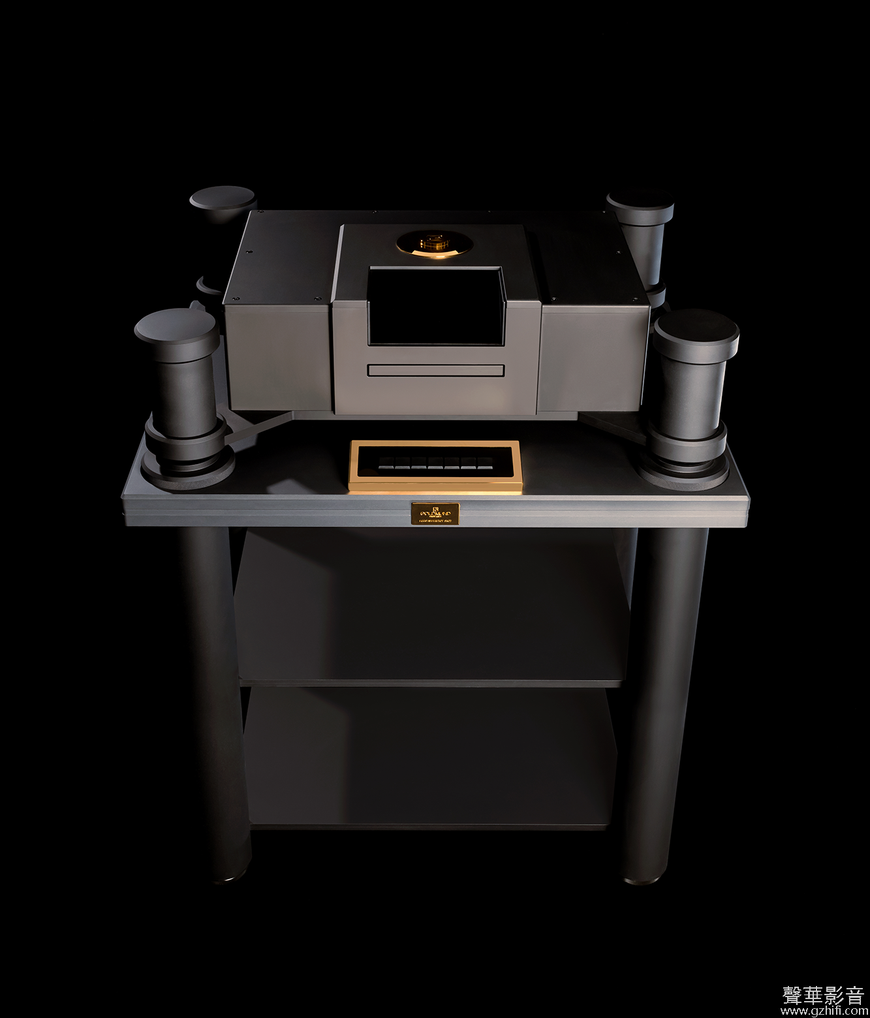

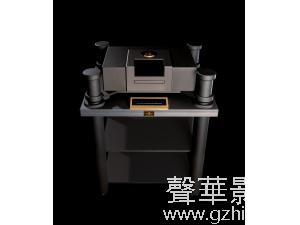

瑞士 Goldmund高文 eidos reference sacd机
Base on D&M SACD mechanism, integrated into the Goldmund mechanical
grounding system to evacuate vibrations and Goldmund damper to increase rigidity
of the loader mechanism for sound transparency.
SACD/ CD/ CD-R/ CD-RW/ DVD-R*/ -RW*/ +R*/ +RW* (*Audio data file only).
USB: up to 384 kHz PCM, up to 22’579.2 MHz DSD.
Dedicated Stereo Analog Audio: XLR balanced, RCA unbalanced.
SPDIF/ AES EBU/ Optical Digital Audio: up to 384 kHz PCM.
Maximum output level XLR balanced: 4 V RMS (standard) ; 8 V RMS (High).
Maximum output level RCA unbalanced: 2 V RMS (standard) ; 4 V RMS (High).
Frequency range: 10Hz – 20kHz, 5 Hz (-0.15 dB), 24 kHz (-0.45 dB), 48 kHz (-1.4 dB), 96 kHz (-4.3 dB).
Signal-to-Noise Ratio: >128 dB.
THD+N: < 0.00016% (Stereo Output). Dynamic range: > 128 dB.
Crosstalk: < 125 dB.
Standard Analog Output: 2 V.
High Analog Output: 4 V.
Nominal line voltage: 117 or 234 V (switchable).
Fuse 1A for 110 V and 220 V.
Input voltage range: +/- 10%.
Power Consumption: 40 W.
68 W x 80 H x 53 D (cm).
110 kg.
