当前位置: 首页 > 产品橱窗 > 功放专区 > 瑞士 Goldmund高文 Telos 380 NextGen 单声道后级

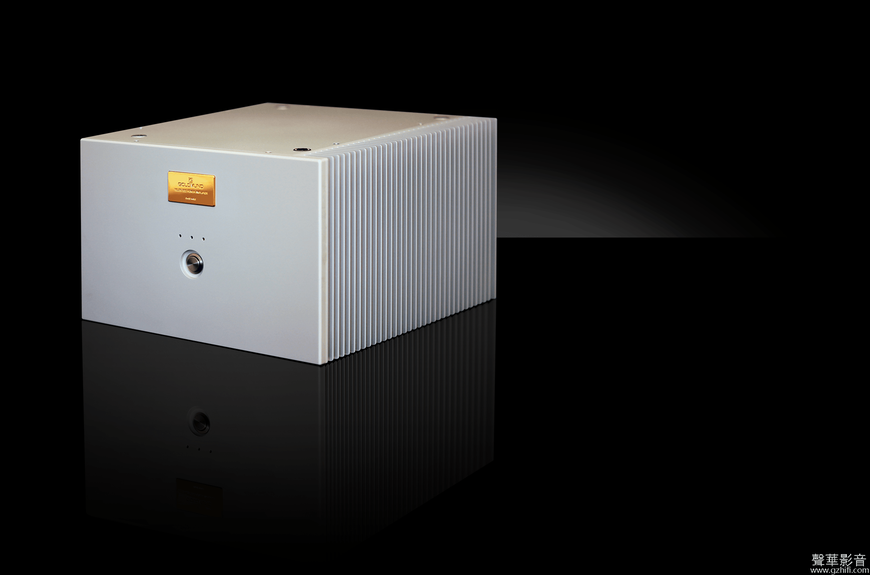

瑞士 Goldmund高文 Telos 380 NextGen 单声道后级

瑞士 Goldmund高文 Telos 380 NextGen 单声道后级

  • 价格请来电商议
  • 商品点击数:15978

简单描述:


聯繫人:陳先生 13262222225

營業電話:021-63663509


經銷地址:上海黄浦区中山南路1820号丽影音响广场1楼108馆 声华影音

RATED POWER CONSUMPTION

IEC 60065, 1/8 Output Power at 8 Ω: 150 W.



REAR PANEL

Power cord: universal socket 3 lugs.
Main fuse (8 A slow-blow for 115 V and 230 V).
2x pairs binding post 5-ways connectors.
Analog RCA input (unbalanced connector).
RS232 command connector.



INPUT

Max level before clipping, Analog input: 1 VRMS.



OUTPUT

Max level before clipping, 1 % THD, unloaded: 158 Vpp.

OUTPUT POWER

Maximum power (IEC60065): 285 WRMS on 8 Ω / 1 % THD.



DISTORTION

IMD (SMPTE), unloaded: < 0.05 %.
THD+N, unloaded: <0.02 % from 20 Hz to 20 kHz at 30 VRMS output.



OUTPUT NOISE FLOOR

Analog input terminated with RCA Shorting Caps, unloaded: < 20 μV from 20 Hz to 20 kHz.



GAIN

35 dB.

DYNAMIC RANGE

22 kHz measurement bandwidth (flat), true RMS unloaded: 100 dB.



DAMPING FACTOR

400 at 1 kHz / 8 Ω.



SIZE & WEIGHT

31 W x 23 H x 38.4 D x (cm).
20 kg.

瑞士 Goldmund高文 Telos 380 NextGen 单声道后级
