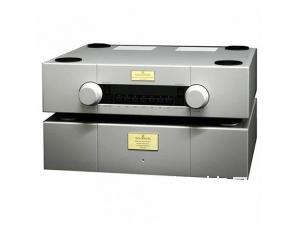

瑞士 Goldmund高文 Mimesis 37S nextgen 前级
Input impedance: 39 kOhms.
Maximum input level (balanced): 9.6 Vrms.
Maximum input level (unbalanced): 4.8 Vrms.
Separated input level adjustment for each of the 7 line inputs: -12 to +12 dB.
Output impedance: 50 Ohms.
Maximum output level (balanced): 19.2 Vrms.
Maximum output level (unbalanced): 9.6 Vrms.
These values for any level to maximum output level.
+/- 0 dB, 20 – 20 kHz.
+/- 3 dB, 0.2 – 900 kHz.
Propagation delay <300 ns stable with frequency from DC to 200 kHz.
Slew rate of the amplification stages: 200 V/us.
Rise time: < 400 ns.
Separation: > 105 dB between channels (20 Hz – 20 kHz).
With 1 Vrms output level, 80 KHz measurement bandwidth, 600 ohms termination impedance.
THD unbalanced input to unbalanced output: 0.002 % flat with frequency.
THD balanced input to balanced out: 0.001 % flat with frequency.
IMD unbalanced input to unbalanced output: 0.002 %.
IMD balanced input to balanced out: 0.001 %.
Signal-to-noise ratio on line input: > 120 dB (0.01 Hz – 10 Mhz).
Weighted ASA A: > 130 dB.
Room temperature: -30 to +40 degrees Celsius.
Internal temperature: +45 to +70 degrees Celsius.
Nominal line voltage: 115 or 230 V.
Input voltage range: +/-15 %.
Maximum power consumption: 70 W.
Separated ground and earth signal.
Automatic switching to MUTING if the AC line drops or is interrupted.
Automatic protection against tape loops.
VOLUME control.
BALANCE control.

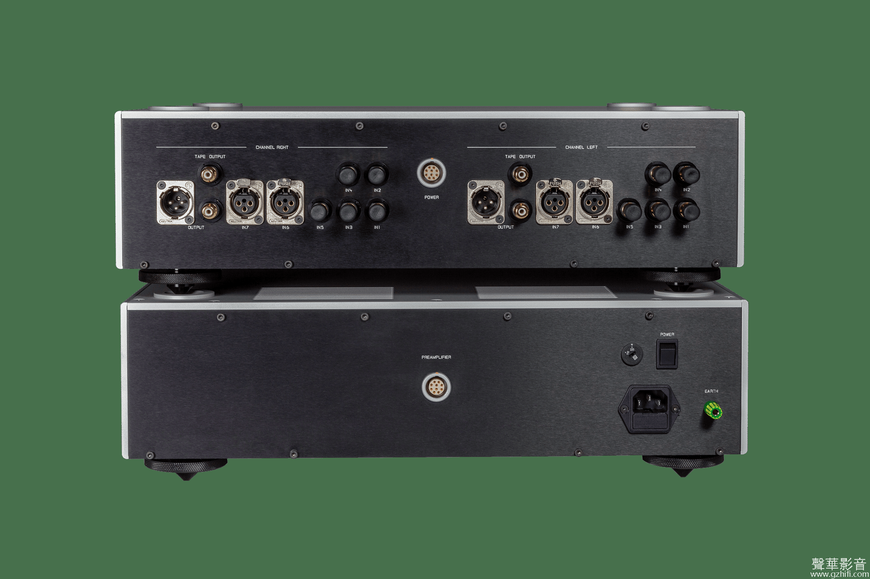

Power connector.
5x pairs of RCA input connectors (right & left).
2x pairs of XLR input connectors (right & left).
1x pair of RCA output connectors (right & left).
1x pair of RCA output connectors (right & left).
1x pair of XLR output connectors (right & left).
1x pair of RCA Tape output connectors (right & left).
Power cord socket (3 lugs).
Main fuse (2.5 A slow-blow).
Voltage selector 115/230 V.
Earthing post (yellow-green).
PREAMPLIFIER:
44 W x 13.5 H x 40 D (cm), without power cord.
9 kg.
POWER SUPPLY:
44 W x 13.5 H x 38.5 D (cm), without power cord.
12 kg.
