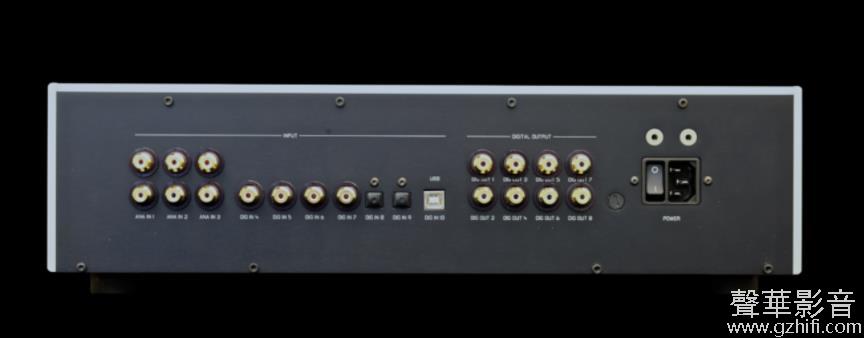

3 analog 2-channel inputs.
4 digital inputs RCA (up to 96 kHz).
2 digital inputs optical toslink (up to 96 kHz).
1 digital input USB (up to 48 kHz PCM Stereo only).
The audio format supported are:
PCM 44.1 kHz to 96 kHz.
Dolby Digital.
DTS.
DTS-CD.
AAC.
DIGITAL OUPUT
8 digital RCA S/PDIF outputs.
Front panel and remote-control adjustable level control with 65 dB range and 0.05 dB accuracy in the 0 to -34 dB range.
REMOTE CONTROL
RC5 Standard remote system is compatible with standard programmable remote control transmitter (codes available on request).
Volume and balanced control.
Selection of the source.
Remote muting and standby.

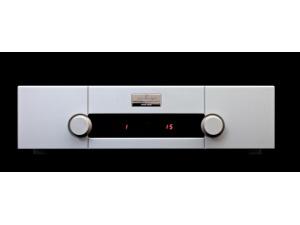

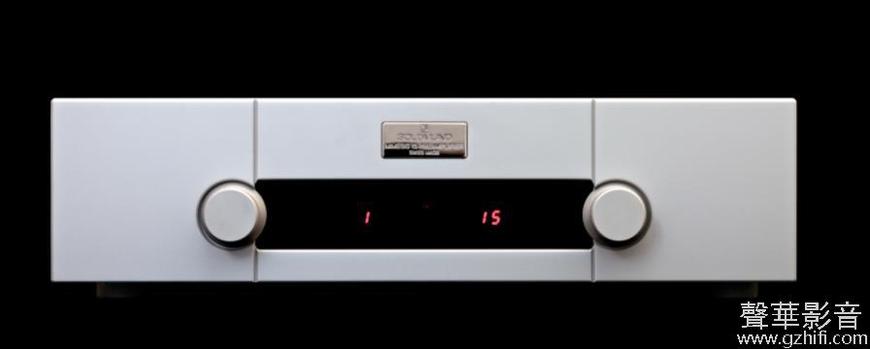

FRONT PANEL CONTROL
2 knobs for input selection and volume control.
2-character numeric display for input selection.
2-character numeric display for volume.
Direct LED format, balance, and function display.
POWER
1 separate transformer.
6 separately regulated power supplies.
Nominal AC line voltage: 115 V or 230 V (+/- 15 %).
Maximum power consumption: 8 W.
Fuse: 100 mA /250 V (slow-blow).
