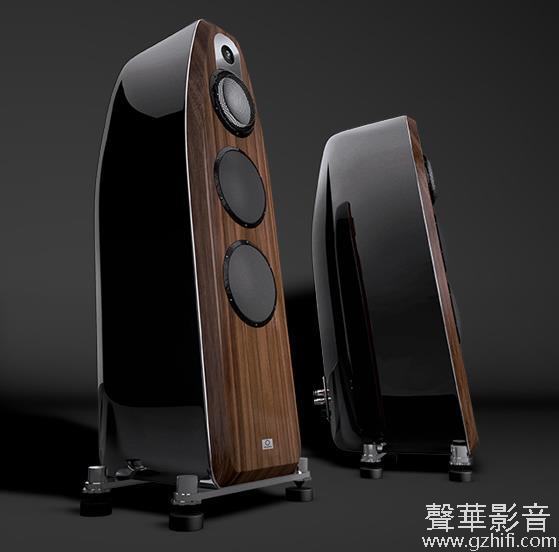

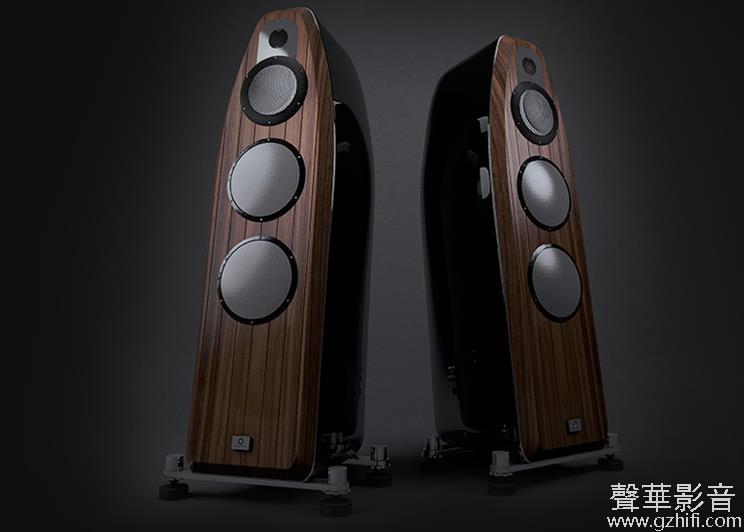

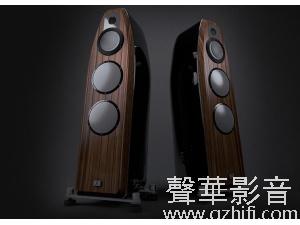

马田 Tenor 2
TECHNICAL SPECIFICATIONS
Frequency range / 24-80000 Hz +-2dB
Power rating / 300 W
Sensitivity / 86 dB / 1 m / 2.83V
Impedance / 6 ohm (3.5 Ohm min)
Type / 3-way bass reflex
Drive units / 2x8” alumimium sandwich, 1x7” ceramic, 1x0.75” diamond
Crossover frequency / 1st order, 360 & 4000Hz
Terminals / WBT Nextgen, bi-wiring
Internal wiring / Jorma Design - optional Statement
Cabinet / 20 mm:s carbon fibre laminate cabinet, 68 mm laminated wood/aluminium front
Stands / Polished stainless steel with Black Diamond Racing pucks and cones
Dimensions WxHxD /
31 x 114 x 40 cm (12.2 x 44.9 x 15.7”)
Net weight / 55 Kg (122.2 lbs)
