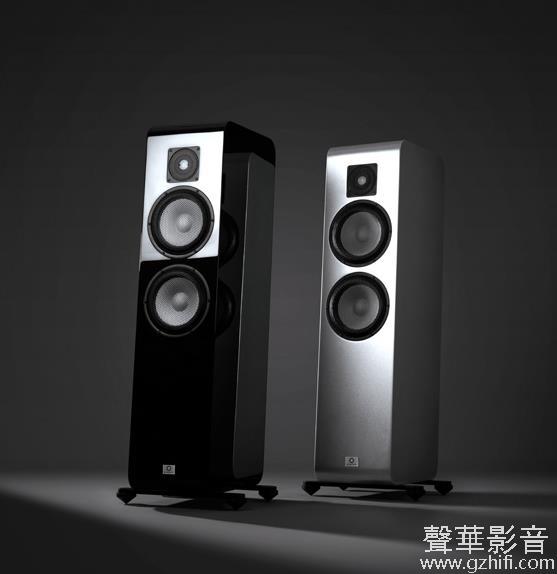

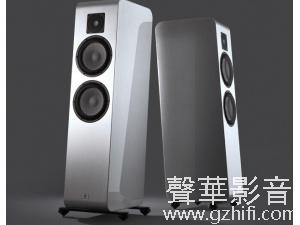

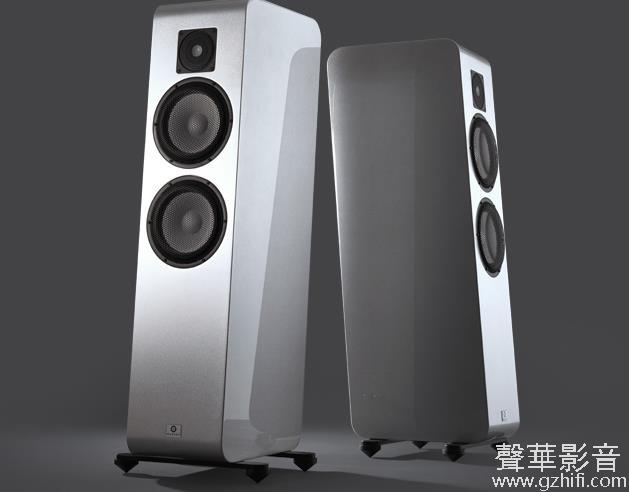

马田 Django L
TECHNICAL SPECIFICATIONS
Frequency range / 27-30000 Hz +-3dB
Power rating / 200 W
Sensitivity / 88 dB / 1 m / 2.83V
Impedance / 6 ohm (3.8 Ohm min)
Type / 2-way bass reflex
Drive units / 2x8” alumimium/ceramic, 1x1.25” ceramic
Crossover frequency / 2nd order 1800Hz
Terminals / Single-wiring WBT
Internal wiring / Jorma Design
Cabinet / 22 mm:s MDF

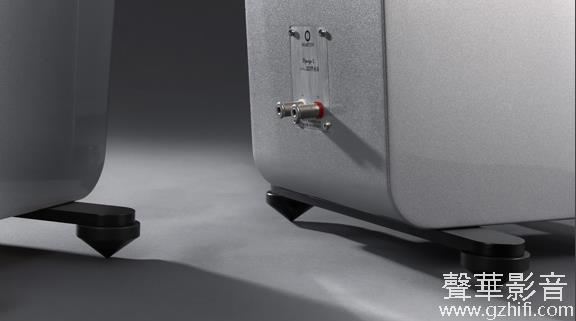

Stands / Anodised aluminium with Marten cones
Dimensions WxHxD /
25.3 x 114 x 41.5 cm (9.9 x 44.9 x 16.3”)
Net weight / 34 Kg (75.5 lbs)
